H-17010

Mueller® H-17010 NO-BLO® Valve Changer for 3/4", 1", & 1-1/4" meter valves on sch. 40 steel.

Catalog number: H-17010

Features:

  • For changing out 3/4" to 1-1/4" Meter Valves installed on schedule 40 steel pipe
  • Includes three Plugging Units, Safety Clamp, Wooden
    Storage Chest (680350), Tailpiece Kit (682993), Rubber
    Stopper Lubricant (580657), (1) extra rubber plug for
    each size unit, and Operating Instructions (Form 8540)
  • Fits most roundway and straightway valves
  • O-ring sealed body and stem
  • Maximum working pressure 60 psig** (414 kPa)
**This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

_
Catalog PDF





Demonstration Videos




Dimensions:

The H-17010 plugging units can be used on valves (roundway or straightway) that have mini- mum port dimensions charted to the right, and if the outlet of the valve has F.I.P. threads.

Valve Size*

Minimum Port Width

Minimum Port Height

3/4"

13/32"

23/32"

1"

17/32"

31/32"

1-1/4"

11/16"

1-9/32"

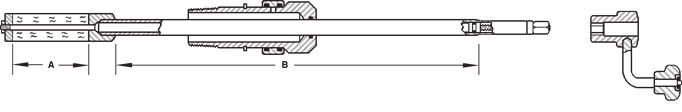

Size* of Plugging Unit

3/4"

1"

1-1/4"

Plugging unit part number

83962

83963

83964

a length of rubber plug

2"

2-5/8"

3-3/8"

B length from ferrule shoulder to taper

12-9/16"

12-9/16"

12-9/16"

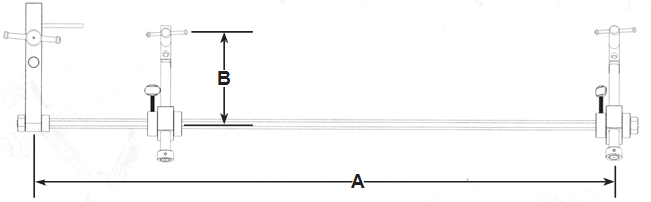

Safety Clamp:

Safety Clamp Part Number

A

B

682597

20"

6-1/2"

*nominal
** this is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

Optional Extended Length Plugging:

  • Used for changing out 3/4", 1 or 1-1/4" Meter Valves installed on schedule 40 steel pipe when additional travel is required.
  • Extended length Safety clamp also available and preferred when using these longer Plugging units.
  • Fits most roundway and straightway valves
  • O-ring sealed body and stem
  • Maximum working pressure 60 psig** (414 kPa)

These plugging units can be used on valves (roundway or straightway) that have minimum port dimen- sions charted to the right, and if the outlet of the valve has F.I.P. threads.


ValveSize*

Minimum Port Width

Minimum Port Height

3/4"

13/32"

23/32"

1"

17/32"

31/32"

1-1/4"

11/16"

1-9/32"

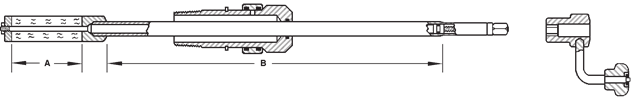

Size* of Plugging Unit

3/4"

3/4"

1"

1"

1"

1-1/4"

1-1/4"

Plugging unit Part number

580617

681427

580618

83866

580788

580621

681430

(a) length of Rubber Plug

2"

2"

2-5/8"

2-5/8"

2-5/8"

3-3/8"

3-3/8"

(B) length from ferrule shoulder to taper

18-13/32"

31-9/16"

18-13/32"

27-5/8"

30-27/32"

18-13/32"

29-29/32"


Safety Clamp (extended length):





Safety Clamp Part Number

A

B

682857

38"

6-1/2"

*nominal
* this is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

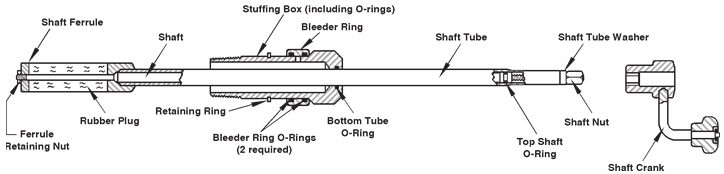

H-17010 Valve Changer Replacement Parts:




Part Name

Plugging Unit Size*

3/4"

1"

1-1/4"

Plugging Unit Complete

83962

83963

83964

Stuffing Box assembly

83281

83282

83283

Bottom Tube O-ring

79514

72239

79344

retaining ring

53777

50990

51014

Bleeder ring

50936

50947

51003

Bleeder O-ring (2)

40709

79351

79479

Shaft crank assembly

83276

83277

83278

Shaft Nut

51134

51249

51101

Shaft Tube Washer

51159

51059

51110

Top Shaft O-ring

53856

43973

79514

Shaft Tube assembly

83966

83968

580392

Shaft assembly

83965

83967

580391

Rubber Plug

51243

51100

51113

Shaft Ferrule

51189

51288

51106

Shaft Ferrule Retaining nut

52969

53832

53863

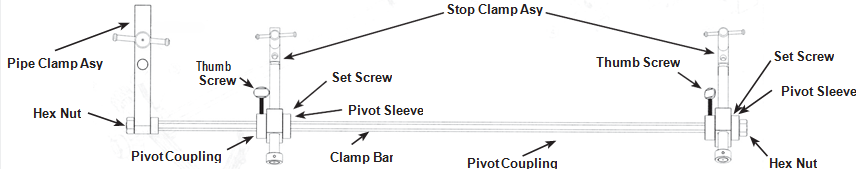

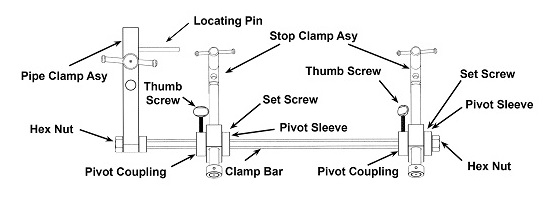

Part Name

Qty Req'd

Part Number

Safety Clamp Complete

-

682597

Pivot Sleeve

2

537866

Set Screw

2

97763

Pivot Coupling

2

537865 (Pivot Coupling)

Shaft tube clamp arm assembly (2)

2

682854

Clamp Bar

1

682598

Pipe clamp assembly

1

83977

Short Locating Pin (2.875" length)

1

501282

Long Locating Pin (4.375" length)

1

501283

Thumb Screw

2

95297

Hex Nut

2

94825

*nominal

Extended Length Plugging Unit Replacement Parts:



Part Name

Plugging Unit Size* (extended length)

3/4"

3/4"

3/4"

1"

1"

1"

1-1/4"

1-1/4"

Plugging Unit Complete

580617  24"

83865    29"

681427  36"

580618  24"

83866  33"

580788  36"

580621  24"

681430  36"

Stuffing Box assembly

681183

681181

681181

83282

83282

83282

83283

83283

Bottom Tube O-ring

79514

79514

79514

72239

72239

72239

79344

79344

Retaining ring

53777

53777

53777

50990

50990

50990

51014

51014

Bleeder ring

50936

50936

50936

50947

50947

50947

51003

51003

Bleeder O-ring (2)

40709

40709

40709

79351

79351

79351

79479

79479

Shaft crank assembly

83276

83276

83276

83277

83277

83277

83278

83278

Shaft Nut

51134

51134

51134

51249

51249

502609

51101

51101

Shaft Tube Washer

51159

51159

51159

51059

51059

502607

51110

51110

Top Shaft O-ring

53856

53856

53856

43973

43973

43973

79514

79514

Shaft Tube assembly

580615

83867

681428

580620

83868

580789

580622

580792

Shaft assembly

580616

83869

681429

580619

83870

580790

580623

580793

Rubber Plug

51243

51243

51243

51100

51100

51100

51113

51113

Shaft Ferrule

51189

51189

51189

51288

51288

51288

51106

51106

Shaft Ferrule Retaining nut

52969

52969

52969

53832

53832

53832

53863

53863

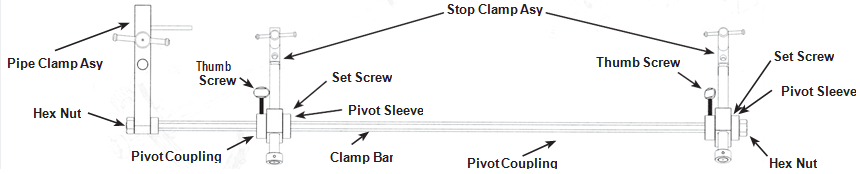

Part Name

Qty Req'd

Part Number

Safety Clamp Complete

-

682857

Pivot Sleeve

2

537866

Set Screw

2

97763

Pivot coupling

2

537865

Stop Clamp Assembly

2

682854

Clamp Bar

1

682795

Pipe clamp assembly

1

83977

Thumb Screw

2

95297

Hex Nut

2

94825

*nominal
