Mueller® NO-BLO® Transition Service Tee Weld x PE Fusion - 100 psig.

Catalog number: H-17504

Specifications:

  • Sizes* – 3/4" x 1/2" MD CTS,
  • 3/4" x 3/4" MD IPS, 3/4" x 3/4" HD IPS,
  • 1" x 3/4" MD IPS, 1" x 1" MD CTS, 1" x 1" MD IPS,
  • 1" x 1" HD IPS, 1-1/4" x 1-1/4" MD IPS,
  • 1-1/4" x 1-1/4" HD IPS, 2" x 2" MD IPS
  • Conforms to ASTM D638 and DOT192.283.
  • Forged Steel Body ASTM A105
  • Cast Iron Completion Cap ASTM A126 CL.B
  • Fusion epoxy coating resists corrosion
  • 100 psig** (690 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

Catalog PDF

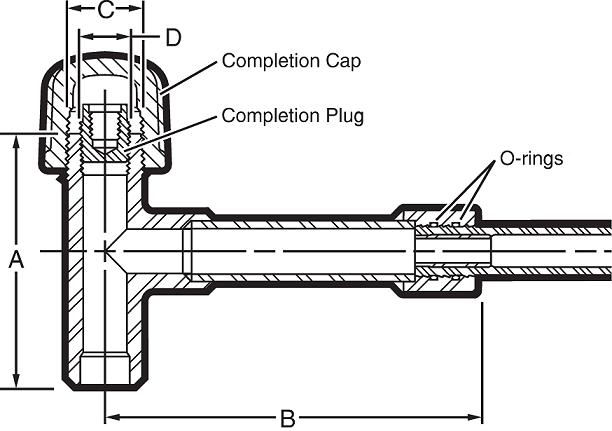

Dimensions:



Dimensions

Size* of Service Tee

3/4" x 1/2"

3/4" x 3/4"

1" x 3/4"

1" x 1"

1-1/4" x 1"

1-1/4" x 1-1/4"

2" x 2"

A

4"

4"

4-1/8"

4-1/8"

4-5/8"

4-5/8"

5-1/2"

B

6-5/8"

6-3/4"

6-11/16"

6-3/4"

7-11/32"

6-11/16"

6-11/16"

C

1"

1"

1-1/4"

1-1/4"

1-1/2"

1-1/2"

2"

D

1/2"

1/2"

3/4"

3/4"

1"

1"

1-1/2"

Replacement Parts:



Replacement Parts

Size* of Service Tee

3/4" x 1/2"

3/4" x 3/4"

1" x 3/4"

1" x 1"

1-1/4" x 1"

1-1/4" x 1-1/4"

2" x 2"

Completion Cap

34061

34061

37483

37483

38138

38138

36310

Completion Plug

78898

78898

34060

34060

34122

34122

36356



*First size is size of inlet, second is size of outlet.

How to select equipment

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 Slide Gate Valve, H-10918 Steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be different for each operation.

E-5/EH-5 Machine

H-17504

3/4"

3/4"

3/4"

1"

1"

1"

ControlValve

H-10914   1-1/4"

H-17025

H-10918   1-1/4"

H-10914  1-1/4"

H-17025

H-10918   1-1/4"

Bushing

-

78829   1"

-

-

78830   1-1/4"

-

Installation

CenterLocatingPunch

H-17615

H-17615

H-17615

H-17615

H-17615

H-17615

TestCap

79159

79159

79159

79160

79160

79160

CompletionPlugWrench

96536

96536

96536

96536

96536

96536

Drilling

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

PowerOperator

H-604

H-604

H-604

H-604

H-604

H-604

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4" x 1"

-

36969   1-1/4" x 1"

-

-

-

Drill

61982   5/8"

61982   5/8"

61982   5/8"

-

-

-

DrillHolder

61981

61981

61981

-

-

-

CombinedDrillandHolder

-

-

-

79185   3/4"

79185   3/4"

79185   3/4"

CuttingGrease

88366

88366

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

682560

682560

Stopping

MAOP†

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4" x 1"

-

36969   1-1/4" x 1"

-

-

-

SteelShutOffTool

45628

45628

45628

36197

36197

36197

RubberShutOffTool

88757

88757

88757

88125

88125

88125

ReplacementRubber

37454

37454

37454

37629

37629

37629

HolderforRubberShutOffTool

61981

63396

61981

61789

61789

61789

RubberStopperLubricant

580657

580657

580657

580657

580657

580657

Inserting

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4" x 1"

-

36969   1-1/4" x 1"

-

-

-

EZReleaseInsertingTool

83261

83261

83261

83261

83261

83261

Extracting

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4" x 1"

-

36969   1-1/4" x 1"

-

-

-

ExtractingTool

80088

80088

80088

80088

80088

80088

ExtractingToolAdapter

-

-

-

-

-

-

E-5/EH-5 Machine

H-17504

1-1/4"

1-1/4"

1-1/4"

2"

2"

2"

ControlValve

H-10914   1-1/2"

H-17025

H-10918   1-1/2"

H-10914  2"

H-10917   2"

H-10918   2"

Bushing

-

78831

1-1/2"

-

-

-

-

Installation

CenterLocatingPunch

H-17615

H-17615

H-17615

-

-

-

TestCap

79161

79161

79161

36811

36811

36811

CompletionPlugWrench

96536

96536

96536

581264

581264

581264

Drilling

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

PowerOperator

H-604

H-604

H-604

H-604

H-604

H-604

MachineAdapter

33575

-

33575

78907

78907

528329

CombinedDrillandHolder

79186

1"

79186

1"

79186

1"

-

-

-

ShellCutter

-

-

-

78910

1-1/2"

78910

1-1/2"

78910

1-1/2"

ShellCutterHolder

-

-

-

78906

78906

501545

CutterHolderExtension

-

-

-

-

-

63392

CuttingGrease

88366

88366

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

682560

682560

Stopping

MAOP†

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapterforSteelShutOffTool

33575

-

33575

78907

78907

528336

SteelShutOffTool

33570

33570

33570

78902

78902

78902

MachineAdapterforRubberShutOffTool

33575

-

33575

78907

78907

528329

RubberShutOffTool

88758

88758

88758

88773

88773

88773

ReplacementRubber

37459

37459

37459

37555

37555

37555

HolderforRubberShutOffTool

61969

61969

61969

78906

78906

501545

HolderExtensionforRubberShutOffTool

-

-

-

-

-

63392

RubberStopperLubricant

580657

580657

580657

580657

580657

580657

Inserting

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapter

33575

-

33575

78907

78907

528329

EZReleaseInsertingTool

83261

83261

83261

83258

83258

83258

Extracting

MAOP*

100psig

100psig

100psig

100psig

100psig

100psig

MachineAdapter

33575

-

33575

78907

78907

528329

ExtractingTool

80088

80088

80088

80087

80087

83262

D-5/DH-5 Machine

H-17504

3/4"

3/4"

1"

1"

ControlValve

H-10914   1-1/4"

H-10918   1-1/4"

H-10914   1-1/4"

H-10918  1-1/4"

Installation

CenterLocatingPunch

H-17615

H-17615

H-17615

H-17615

TestCap

79159

79159

79160

79160

CompletionPlugWrench

96536

96536

96536

96536

Drilling

MAOP*

100psig

100psig

100psig

100psig

PowerOperator

H-604

H-604

H-604

H-604

MachineAdapter

36195

36195

36195

36195

ReducingBushing

36969   1-1/4" x 1"

36969   1-1/4" x 1"

-

-

Drill

61982   5/8"

61982   5/8"

-

-

DrillHolder

36998

36998

-

-

CombinedDrillandHolder

-

-

79185   3/4"

79185   3/4"

BoringBarAdapter

-

-

36324

36324

CuttingGrease

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

Stopping

MAOP†

100psig

100psig

100psig

100psig

MachineAdapter

36195

36195

36195

36195

ReducingBushing

36969   1-1/4" x 1"

36969   1-1/4" x 1"

-

-

SteelShutOffTool

45628

45628

36197

36197

BoringBarAdapter

36324

36324

36324

36324

RubberShutOffTool

88757

88757

88125

88125

ReplacementRubber

37454

37454

37629

37629

RubberShutOffHolder

36998

36998

36915

36915

RubberStopperLubricant

580657

580657

580657

580657

Inserting

MAOP*

100psig

100psig

100psig

100psig

MachineAdapter

36195

36195

36195

36195

ReducingBushing

36969   1-1/4" x 1"

36969   1-1/4" x 1"

-

-

EZReleaseInsertingTool

83261

83261

83261

83261

BoringBarAdapter

36324

36324

36324

36324

Extracting

MAOP*

100psig

100psig

100psig

100psig

MachineAdapter

36195

36195

36195

36195

ReducingBushing

36969   1-1/4" x 1"

36969   1-1/4" x 1"

-

-

ExtractingTool

88286

88286

88286

88286

D-5/DH-5 Machine

H-17504

1-1/4"

1-1/4"

2"

2"

2"

Control Valve

H-10914   1-1/2"

H-10918   1-1/2"

H-10914  2"

H-10917   2"

H-10918   2"

Bushing

-

-

-

-

-

Installation

CenterLocatingPunch

H-17615

H-17615

-

-

-

TestCap

79161

79161

36811

36811

36811

CompletionPlugWrench

96536

96536

581264

581264

581264

Drilling

MAOP*

100psig

100psig

100psig

100psig

100psig

PowerOperator

H-604

H-604

H-604

H-604

H-604

MachineAdapter

36196

36196

36188

36188

36188

Drill

33529   1"

33529   1"

-

-

-

DrillHolder

33555

33555

-

-

-

ShellCutter

-

-

78910   1-1/2"

78910   1-1/2"

78910   1-1/2"

ShellCutterHolder

-

-

33316

33316

33316

CutterHolderExtension

-

-

-

-

63392

CuttingGrease

88366

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

682560

Stopping

MAOP†

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36196

36196

36188

36188

36188

SteelShutOff Tool

33600

33600

36189

36189

36189

RubberShutOffTool

88758

88758

88773

88773

88773

ReplacementRubber

37459

37459

37555

37555

37555

HolderforRubberShutOffTool

61969

61969

33316

33316

33316

BoringBarAdapter

36324

36324

-

-

-

RubberStopperLubricant

580657

580657

580657

580657

580657

Inserting

MAOP*

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36196

36196

36188

36188

36188

EZReleaseInsertingTool

83257

83257

83258

83258

83258

BoringBarAdapter

36324

36324

36324

36324

36324

Extracting

MAOP*

100psig

100psig

100psig

100psig

100psig

MachineAdapter

36196

36196

36188

36188

36188

ExtractingTool

88286

88286

88384

88384

88384

*MaximumAllowable Operating Pressure
†In stopping section of chart, Maximum Allowable Operating Pressure (MAOP) applies to use of rubber shut off tool only. For steel shut off tool, variables in hole drilled in pipe may or may not allow similar MAOP.
