E-5™

public://uploads/wysiwyg/Machines-Drilling_StoppingMachines-E-5.png

E-5™

Mueller® E-5™ Drilling Machine – for drilling operations under pressure – 1-1/2" to 12" inclusive.

Catalog number: 39330

Specifications:

  • Used to install up to 2" tees, Save-A-Valve® Drilling Nipples and Line Stopper Fittings
  • Has boring bar locking mechanism for safe, positive operation
  • Test plug feature allows for stack pressurization
  • 12-1/8" (308 mm) boring bar travel
  • 500 psig (3447 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

Resources:

_
Catalog PDF





Demonstration Video

MUELLER® NO-BLO® Operations performed by the MUELLER® E-5™ Machine:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO Service Tees

3/4"

1"

1-1/4"

1-1/2"

2"

Drill main, insert or extract completion plug, make stop-off

Mueller NO-BLO Service Stop Tees

1/2"

3/4"

1"

1-1/4"

2"

Drill main, insert or extract stem and bushing, recondition body seat

Mueller NO-BLO Curb StopTees

-

1"

1-1/4"

2"

-

Drill main, insert or extract stem, recondition body seat

Mueller NO-BLO Steel Valves

-

1"

-

-

-

Insert or extract stem, recondition body seat

Mueller NO-BLO

Service Line Stopper Fittings

3/4"

1"

1-1/4"

-

-

Drill main, insert or extract completion plug, make stop-off

Mueller Low Pressure

Line Stopper Fittings

3/4"

1"

1-1/4"

2"

-

Drill main, insert or extract completion plug, make stop-off

Mueller Save-A-Valve

Drilling Nipples

3/4"

1"

1-1/4"

1-1/2"

2"

Drill main, insert or extract completion plug

*The size of Mueller NO-BLO Tees, as used in this table, refers to the size of the inlet. The size of Mueller Steel Valves, Service Line Stopper Fittings, Low Pressure Line Stopper Fittings and Save-A-Valve Drilling Nipples refers to the nominal size.

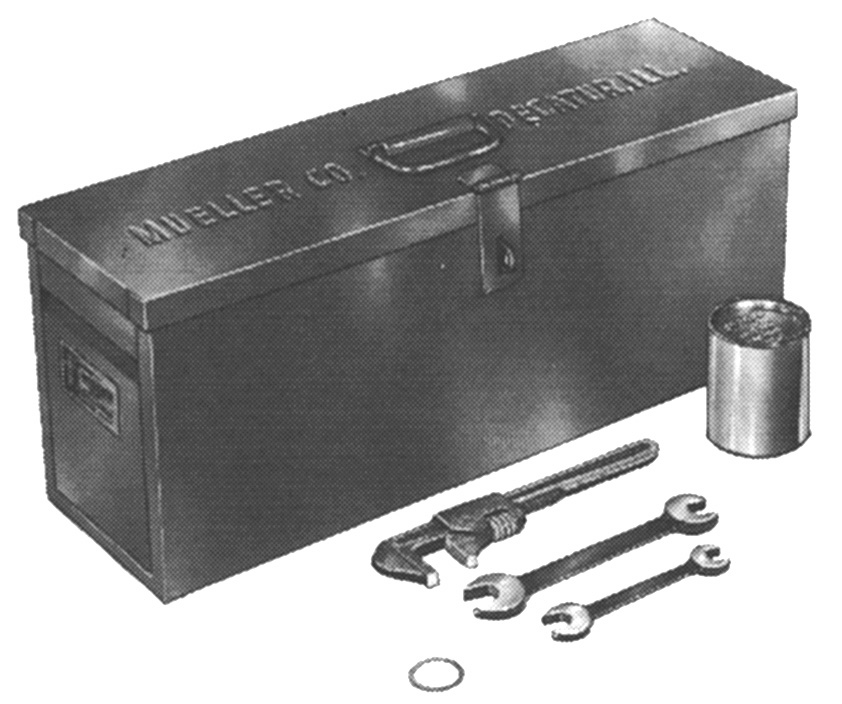

Equipment furnished with each Mueller® E-5™ Drilling Machine:

  • Metal Storage Chest (580971)
  • Reversible Ratchet Handle (580897)
  • Body Gasket (47756)
  • Adjustable Wrench (91664)
  • Two double open end Wrenches (9/16"x11/16" 59787 and 3/4"x13/16" 96536)
  • Cutting Grease (88366)
  • Operating Instruction Manual (Form 9335)

Total shipping weight: 49 lbs.
Machine only weight: 32 lbs.

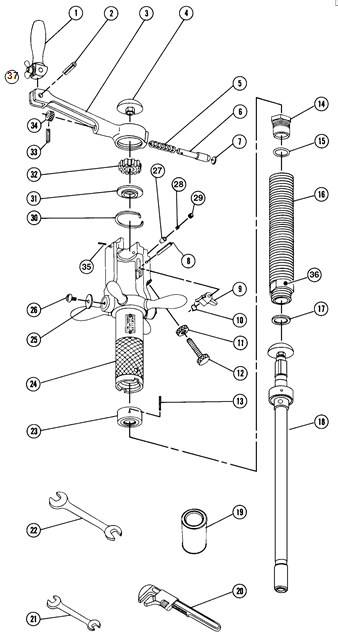

Item No.

Part No.

Part Name

1

80085

Crank Handle

2

500635

Handle Pin

3

51484

Handle

4

83431

Knob

5

37883

Spring

6

51426

Ratchet Dog

7

51427

Plug

8

502027

PivotArmPin

9

502025

PivotArm

10

502026

PivotArmSpring

11

502029

Lock Nut

12

502028

OperatingScrew

13

48130

Friction Collar Pin

14

51432

Packing Gland

15

46726

O-ring

16

503159

Body

17

47756

Body Gasket

18

580999

BoringBar Complete

19

88366

Cutting Grease

20

91664

Adjustable Wrench

21

59787

Wrench 9/16"x 11/16"

22

96536

Wrench 3/4" X 13/16"

23

580610

Friction Collar

24

580895

FeedTubeAndYoke

25

537126

Bushing (2)

26

312443

Retaining Screw (2)

27

500851

Detent Pin (2)

28

59810

Spring (2)

29

305006

Screw

30

51428

Retaining Ring

31

503163

Wheel Bushing

32

503162

Ratchet Wheel

33

500803

OperatingPin

34

37863

Detent Knob

35

312598

Detent Screw

36

41435

BodyPlug

37

580897

Ratch Handle Complete

Metal Storage Chest 580971 (not illustrated)
NOTE: These illustrations are for parts identification only.
DO NOT use these illustrations for assembly or disassembly of machine.
Contact Mueller Customer Service Center for assistance.
