Mueller® B-101-99007 Drilling & Tapping Machine.  Similar in design and features as the B-101™ machine, the A-3 machine (not shown) can insert larger size tees.

Catalog number: 39650

Features:

  • Anti-friction Thrust Collar - fluorocarbon impregnated steel bearing sealed in a steel case - no lubrication required.
  • Feed Nut and Yoke – spring detents hold feed yoke securely in place around boring bar. Square shank on feed yoke fits power operator for automatic feed.
  • Feed Sleeve and Cap – Acme threads require only 2-1/2 turns to remove sleeve and cap for fast disassembly; long bearing surfaces provide exceptional boring bar rigidity; positive metal-to-metal contact with upper barrel maintains boring bar alignment; O-ring seals.
  • Boring Bar – chrome plated to resist corrosion; helps assure long life of O-ring seals.
  • Tool Holding Method – transmits force evenly through drive pins on tool to drill and tap pipe. Retaining screw holds tool tightly in boring bar socket for precise alignment of tool and boring bar. Convenient knock-out pin allows easy tool removal.
  • Ratchet Handle – fully enclosed ratchet; permanently lubricated; quick reverse button.
  • Locking Mechanism – secures the boring bar to the feed yoke to prevent the drill from spiraling into the pipe before the hole is completely drilled. Helps prevent tool breakage.
  • O-Ring Seals – seal off special cavity inside feed sleeve to provide oil reservoir for lubricating boring bar and O-rings; boring bar wiper ring protects bottom O-ring.
  • Easily Maintained Bypass Valve – uses O-ring valve technology for better sealing. Locking feature prevents unintended operation.
  • Offset Body – reduces collection of chips around flop valve when machine is in horizontal or inclined position; increased diameter gives adequate clearance for inserting greater variety of stops and valves.
  • Flop Valve - seats with pressure, self-aligning, molded neoprene washer; lever handle has positive lock in open or closed position, position indicator included.

Specifications:

  • Hand or power operation
  • Designed for use on pressurized or dry mains
  • Insert or extract machine inserted service stop tees; pipe plugs to 2-1/2" in size
  • Use on cast iron or steel pipe
  • 90 psig (621 kPa) maximum working pressure without optional power clevis

_
Catalog PDF

Item

Sizes***

Operation

Method



Service Stop Tees



3/4"

Drill and tap main

Hand or power

Insert Service Stop tee

Hand

Extract Service Stop tee

Hand







Pipe Plugs



1/2"



5/8"



3/4"



1"

Drill and tap main

Hand or power

Insert pipe plug

Hand

Extract pipe plug

Hand



1-1/4"



1-1/2"



2"



2-1/2"

Drill and tap main

Hand* or power**

Insert pipe plug

Hand

Extract pipe plug

Hand

*When drilling or tapping above 1" by hand, use extension handle.
**When power operating the machine to drill and tap 1-1/2" and larger, only combined shell cutters and taps should be used.
***Nominal
NOTE: All tools and equipment used with the B-101 machine can also be used with the B-100 machine. "B-101" is a registered trademark of Mueller Co., Decatur, IL.

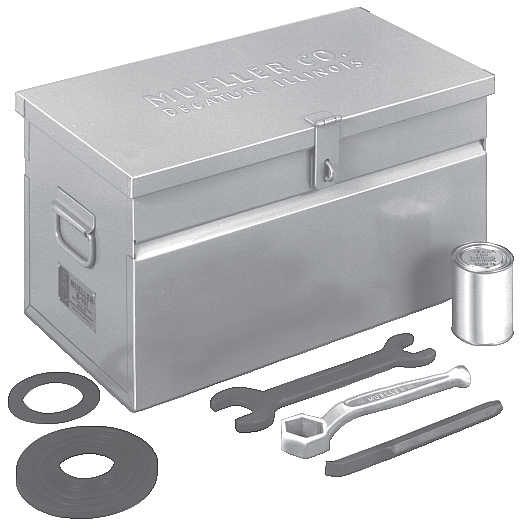

Equipment furnished with each machine:

  • Metal Storage Chest (89265)
  • Reversible Ratchet Handle (528273)
  • Small Saddle Gasket (fits between machine and saddle) (40066)
  • Large Saddle Gasket (fits between saddle and pipe) (40067)
  • Flat Link Chain (580551)
  • Chain Hooks, Nuts and Washers
  • Open End Wrench (for E-Z® release inserting tools) (501579)
  • Box End Wrench (for tightening chain hook nuts and tool retaining screw) (500708)
  • Body Cleaning Chisel (for cleaning debris from inside machine body) (40050)
  • Cutting Grease (88366)
  • Instruction Manual (Form 8910)
  • Enhanced Bypass Relief Valve with Locking Feature (682562)

Equipment to be selected:

  • Combined Drills and Taps or Shell Cutters and Taps
  • Inserting Tools (used to insert service stop tees or pipe plugs)
  • Machine Saddles (adapts machine to specific type and size of main)

Optional equipment:

  • Extracting Tools (used to remove service stop tees or plugs from mains)
  • Equipment for special uses
  • Power Operator



Total shipping weight: 114 lbs. (52 kg)
Handling weight during operation - Upper section: 20 lbs. (9 kg)
Handling weight during operation - Lower section: 23 lbs. (10 kg)

NOTE: All tools and equipment used with the B-101 machine can also be used with the B-100 machine. "B-101" is a registered trademark of Mueller Co., Decatur, IL.

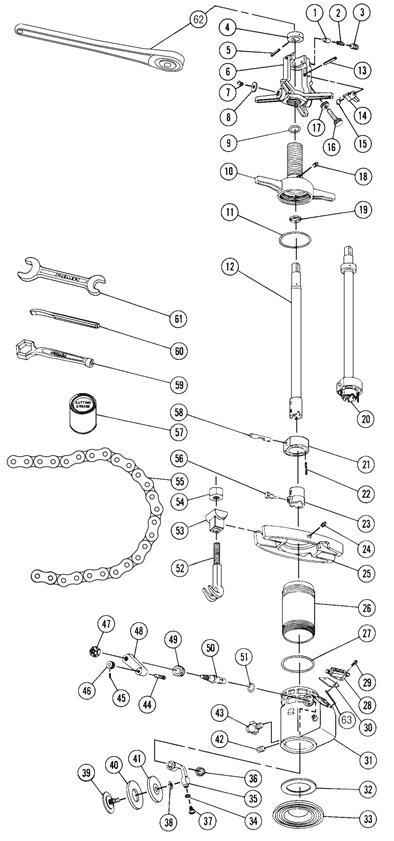

Item No.

Part Name

Part Number

1

5000851

Detent Pin - 2

2

59810

Spring - 2

3

305006

Screw - 2

4

580610

Friction Collar

5

48130

Retaining Pin

6

580611

Feed Nut & Yoke Complete

7

312443

Yoke Retaining Screw - 2

8

537126

Washer - 2

9

79269

Boring Bar O-ring - 2

10

500685

Feed Sleeve & Cap

11

500687

Cap Packing

12

502022

Boring Bar

13

502027

Rollpin

14

502025

Pivot Arm

15

502026

Pivot Arm Spring

16

502028

Operating Screw

17

502029

Lock Nut

18

41435

Oil Plug

19

500887

Wiper Ring

20

580609

Boring Bar Complete

21

500692

Bearing

22

48130

Retaining Pin

23

500691

Bearing Sleeve

24

97795

Chain Yoke Retaining Screw

25

500683

Chain Yoke

26

500682

Cylinder

27

500670

Valve Body O-ring

28

682161

Bypass Valve Sub Assembly

29

312148

Bypass Valve Screw - 2

30

311812

Bypass Valve Gasket

31

502046

Valve Body

32

40066

Small Saddle Gasket

33

40067

Large Saddle Gasket

34

52165

Lock Washer

35

500672

Valve Gate Arm

36

72627

Spring

37

500675

Lock Screw

38

500676

Lock Nut

39

500674

Valve Washer And Stem

40

500673

Gate Washer

41

500671

Valve Gate

42

50369

Pipe Plug

44

501061

Handle Screw

45

302575

Lock Screw

46

46280

Handle Knob

47

500669

Handle Nut

48

500668

Lever Handle

49

500667

Valve Stem Retaining Nut

50

500666

Valve Stem

51

41301

Valve Stem O-ring

52

580550

Chain Hook - 1

53

500707

Chain Hook Washer - 2

54

500706

Chain Hook Nut -2

55

580551

Chain

56

500694

Tool Rataining Screw

57

88366

Cutting Grease

58

500693

Knock Out Pin

59

500708

Chain Hook Wrench

60

40050

Body Cleaning Chisel

61

501579

Inserting Tool Wrench

62

528273

Ratchet Handle Complete

63

682162

Bypass Valve Safety Plate



682561

Bypass Valve Key Repair Kit



306991

Bypass Spare Retaining Ring



682562

Bypass Valve Repair Kit























































































NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service. Contact Mueller Customer Service Center for details.
