Mueller® H-17335 Unit No. 3 Stopping Machine

Catalog number: H-17335

Specifications:

  • Hand operation
  • Used to align, insert, extract Completion Plugs in 6" and 8" Line Stopper Fittings,
  • Flanged Service Tees and Save-A-Valve® Drilling Nipples
  • Positive mechanical feed mechanism, with locking feed yoke
  • Used in conjunction with Control Valve – 9-1/4" Gate Valve (83953)
  • Comes in Wooden Storage Case (304666)
  • Includes Operating Instruction Manual (Form 8571)
  • Completion Plug Wrench (36404)
  • 100 psig (690 kPa) maximum working pressure at 100F (38C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the plug alignment, plug inserting or plug extracting operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF







Demonstration Video

MUELLER NO-BLO® Operations performed by the MUELLER H-17335 Completion Machine:

Item

Size* of Fitting

Mueller NO-BLO Operation

Mueller Line Stopper Fittings

6"

8"



Align, insert or extract completion plug

Mueller Flanged Tees

6"

8"

Mueller Save-A-Valve Drilling Nipples

6"

8"

*Nominal size

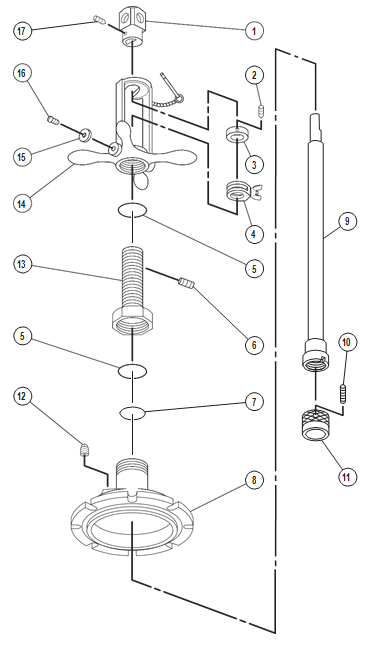

Item No.

Part Number

Part Name (quantity)

1

36677

Bar head

2

40013

Screw (2)

3

36678

Friction collar

4

83544

Clamping collar assembly

5

51458

O-ring (2)

6

41435

Oil plug

7

78827

O-ring

8

36679

Body

9

53512

Inserting bar

10

92926

Screw

11

36722

Coupler nut

12

64134

Plug

13

501680

Feed sleeve

14

88607 *

Feed nut and yoke assembly

15

50133

Washer (2)

16

79745

Sems fastener

17

58458

Screw

-

304666

Wooden storage chest (not shown)

-

F8571

Operating instruction manual (not shown)


NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service, and field tapping service. Contact Mueller Customer Service Center for details.
