Mueller® H-17340 Unit No. 3SW Stopping Machine

Catalog number: H-17340

Specifications:

  • Hand operation
  • Used to stop-off 4", 6" and 8" Line Stopper Fittings and Flanged Service Tees
  • Body has integral 2" F.I.P. thread bypass connection
  • Used in conjunction with Control Valve – 9-1/4" Gate Valve (83953)
  • Comes in Wooden Storage Chest (96824)
  • Includes Operating Instruction Manual (Form 8834)
  • 275 psig (1898 kPa) maximum working pressure at 100F (38C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling, stopping or completion operations has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF







Demonstration Video

MUELLER NO-BLO ® Operations performed by the MUELLER 89366 Stopping Machine:

Item

Size* Of Fitting

Mueller NO-BLO Operation

Mueller Line Stopper Fittings

4"

6"

8"

Stop off fitting

Mueller Flanged Tees

4"

6"

8"

Stop off tee

*Nominal size

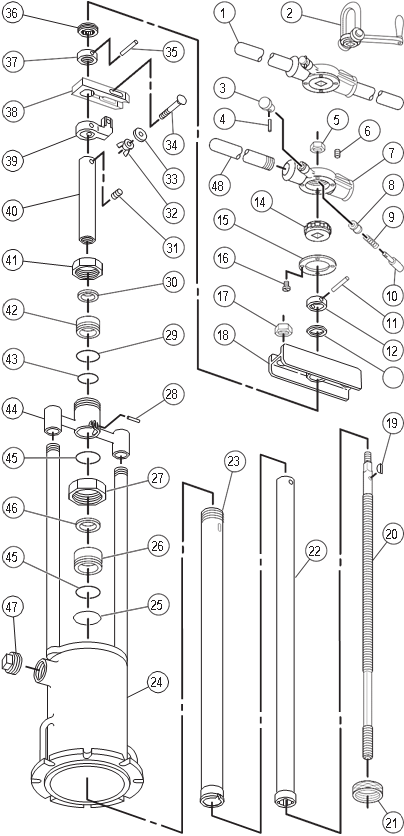

Item No.

Part Number

Part Name (quantity)

1

80668

Ratchet handle complete

2

83111

Crank/lift handle assembly

3

33482

Ratchet button

4

53747

Pin

5

46028

Nut

6

98430

Screw (2)

7

37937

Rachet handle body

8

33481

Rachet dog sleeve

9

54103

Rachet spring

10

33478

Rachet dog

11

60507

Pin

12

44268

Collar

13

45215

Trust washer

14

79972

Rachet wheel

15

79973

Rachet plate

16

52207

Screw (4)

17

52055

Nut (2)

18

83108

Guide post tie bar assembly

19

79987

Key

20

45111

Operating tube screw

21

79981

Coupler nut

22

83106

Operating tube

23

44280

Guide tube

24

83101

Pressure Chamber assembly

25

501419

O-ring

26

508537

Lower packing gland

27

44168

Body packing nut

28

60350

Pin

29

78828

O-ring

30

48137

Upper wiper ring

31

98522

Screw (3)

32

94720

Wing nut

33

45556

Washer

34

90103

Bolt

35

503699

Pin

36

45120

Thrust bearing

37

44266

Collar

38

44277

Clamp bar

39

83110

Operating tube clamp

40

45114

Operating tube nut

41

60345

Packing nut

42

508538

Upper Packing gland

43

79506

O-ring

44

83109

Guide tube cap assembly

45

40855

O-ring (2)

46

501158

Lower wiper ring

47

52916

Plug

48

37961

Handle

-

96824

Wooden storage chest (not shown)

-

F8834

Operating instruction manual (not shown)


NOTE: These illustrations are for parts identification only. DO NOT use these illustrations for assembly or disassembly of machine. Mueller Co. offers a machine repair service. Contact Mueller Customer Service Center for details.
