D-5™

public://uploads/wysiwyg/Machines-Drilling_StoppingMachines-D-5_0.png

D-5™

Mueller® D-5™ Machine — for drilling and stopping operations under pressure.

Catalog number: 39305

Specifications:

  • Hand, air or hydraulic power operation
  • Used to install up to 4" Tees, Save-A-Valve® Drilling Nipples, and Line Stopper Fittings
  • Has boring bar locking mechanism for safe, positive operation
  • Test plug feature allows for stack pressurization
  • 14" (356 mm) boring bar travel
  • 500 psig (3447 kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF







Demonstration Video

MUELLER® NO-BLO® Operations performed by the MUELLER® D-5 Machine:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO Service Tees

3/4"

1"

1-1/4"

1-1/2"

2"

-

Drill main, insert or extract completion plug, make stop-off

Mueller NO-BLO Service Stop Tees

1/2"

3/4"

1"

1-1/4"

2"

-

Drill main, insert or extract stem and bushing, recondition body seat

Mueller NO-BLO Curb StopTees

1"

1-1/4"

2"

-

-

-

Drill main, insert or extract stem, recondition body seat

Mueller NO-BLO Steel Valves

1"

-

-

-

-

-

Insert or extract stem, recondition body seat

Mueller NO-BLO

Service Line Stopper Fittings

1"

1-1/4"

1-1/2"

2"

2-1/4"

2-1/2"

Drill main, insert or extract completion plug, make stop-off

Mueller Low Pressure

Line Stopper Fittings

3/4"

1"

1-1/4"

2"

3"

4"

Drill main, insert or extract completion plug, make stop-off

Mueller Save-A-Valve

Drilling Nipples

1"

1-1/4"

1-1/2"

2"

2-1/2"

3"

Drill main, insert or extract completion plug

*The size of Mueller NO-BLO Tees, as used in this table, refers to the size of the inlet. The size of Mueller Steel Valves, Service Line Stopper Fittings, Low Pressure Line Stopper Fittings and Save-A-Valve Drilling Nipples refers to the nominal size.

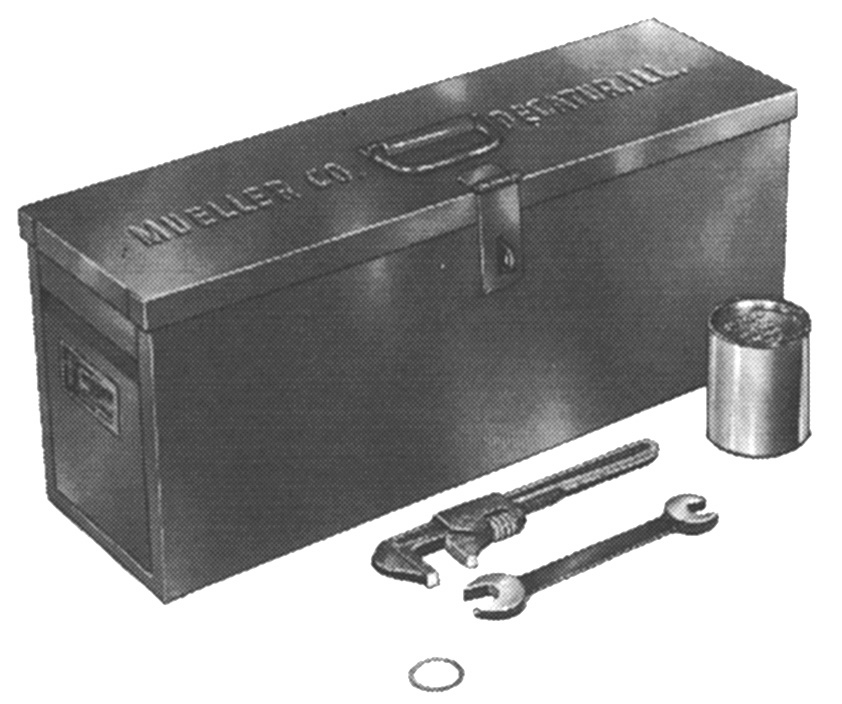

Equipment furnished with each D-5 machine:

  • Metal Storage Chest (580969)
  • Reversible Ratchet Handle (85308)
  • Body Gasket (33278)
  • Adjustable Wrench (91664)
  • Double open end Wrench (58196)
  • Cutting Grease (88366)
  • Operating Instruction Manual (Form 9335)

Total shipping weight: 60.5 lbs.
Machine only weight: 34 lbs.

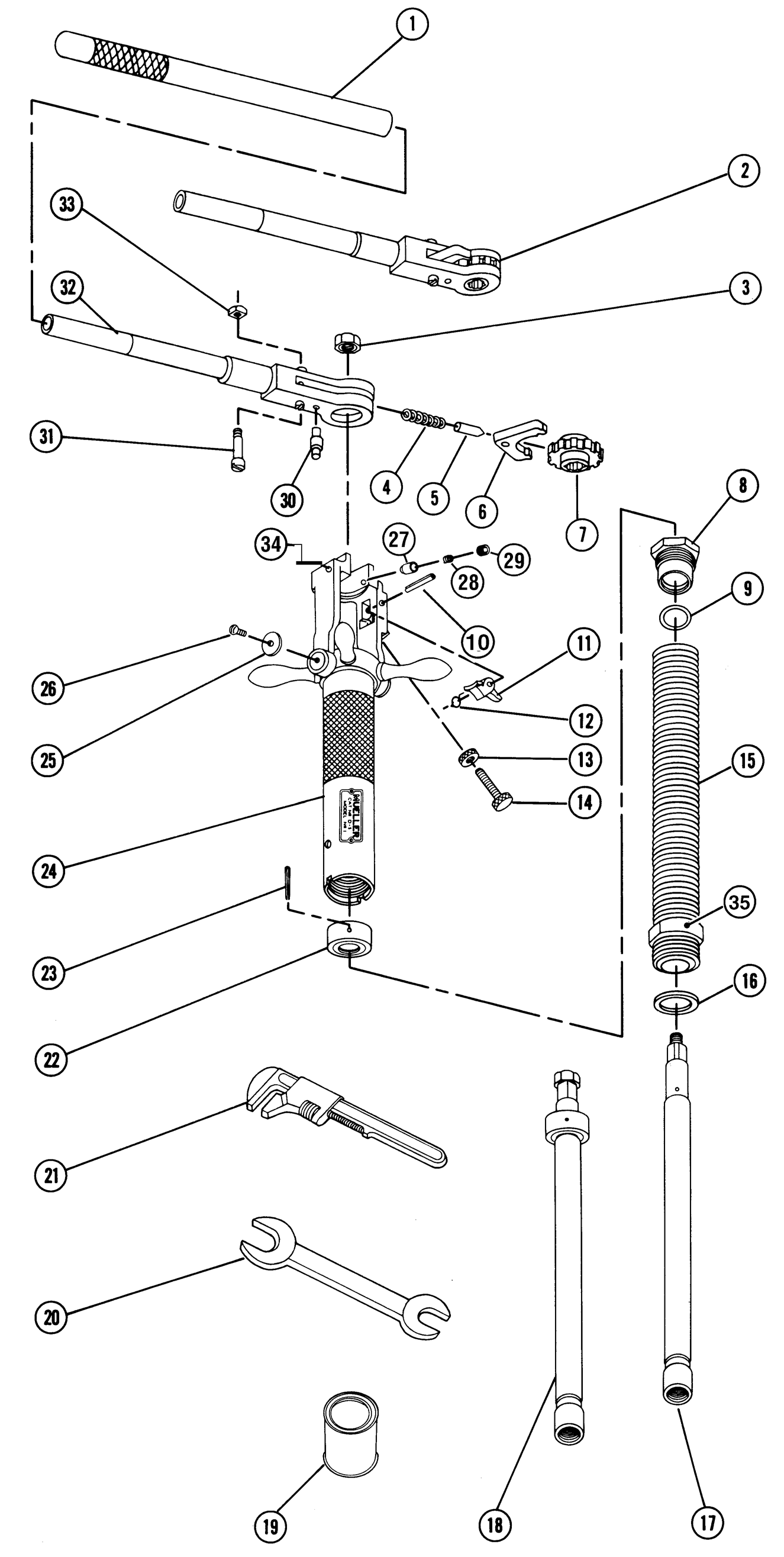

Item No.

Part No.

Part Name

1

86391

Handle Extension

2

85308

Ratchet Handle

3

46029

Retaining Nut

4

40007

Spring

5

40006

SpringPin

6

40004

Ratchet Dog

7

40137

Ratchet Wheel

8

51377

Packing Gland

9

51458

O-ring (3)

10

502027

Rollpin

11

502025

PivotArm

12

502026

PivotArmSpring

13

502029

Lock Nut

14

502028

Operating Screw

15

36758

Body

16

33278

Body Gasket (2)

17

503141

Boring Bar

18

580945

Boring Bar Complete

19

88366

Cutting Grease

20

58196

Wrench 1-1/16" X 1-1/4"

21

91664

Adjustable Wrech

22

580610

Friction Collar

23

48130

Friction Collar Rollpin

24

580946

Feed Tube & Yoke Complete

25

50133

Washer

26

79745

Retaining Screw

27

500851

Detent (2)

28

59810

Detent Spring (2)

29

305006

Screw

30

40139

Stud

31

40138

Bolt*

32

80111

Handle Bar

33

46255

Nut*

34

312598

Detent Screw

35

41435

Body Plug


*Order both parts when replacing either one. Metal Storage Chest 580969 (not illustrated).
NOTE: These illustrations are for parts identification only.
DO NOT use these illustrations for assembly or disassembly of machine.
Contact Mueller Customer Service Center for assistance.
