H-17135

Mueller® H-17135 Machine (Unit No. 1)

Catalog number: H-17135

  • Hand operation
  • Used to stop-off 1-1/2" to 4" Line Stopper Fittings
  • Body has integrally cast bypass boss tapped 1-1/4" N.P.T. thread
  • Has boring bar locking mechanism for safe, positive operation
  • Use on cast iron, ductile iron pipe or steel pipe
  • 125 psig (862kPa) maximum working pressure at 100 F (38 C)
NOTE: The working pressure or temperature rating is reduced accordingly if any attachment, valve, or fitting subjected to pressure or temperature during the drilling operation has a maximum working pressure or temperature rating less than that specified above.

_
Catalog PDF





Demonstration Video

MUELLER® NO-BLO® Operations performed by the MUELLER® H-17135 Machine:

Item

Size*

Mueller NO-BLO Operation

Mueller NO-BLO Service Line Stopper Fittings

1-1/2"

2"

2-1/2"

Make stop-off, insert or extract completion plug

Mueller Low Pressure Line Stopper Fittings

2"

3"

4"

Make stop-off, insert or extract completion plug

*The size refers to the nominal size of Mueller Line Stopper Fittings and Low Pressure Line Stopper Fittings.

Equipment furnished with each H-17135 stopping machine:

  • Wood Storage Chest (302549)
  • Operating Instruction Manual (Form 8517)

Total shipping weight: 39 lbs.

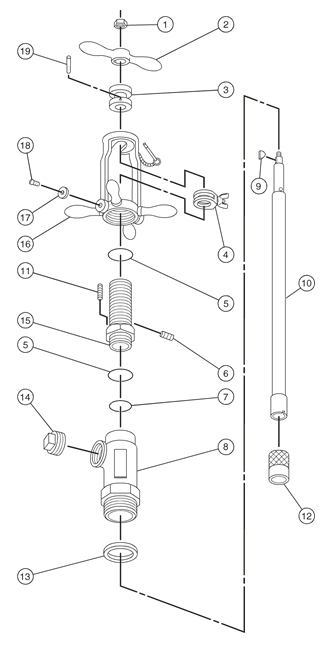

Item No.

Part No.

Part Name

1

58849

Nut

2

36286

Handle

3

36294

Collar

4

83913

Clamping Collar Assembly

5

46726

Inserting Bar O-ring (2)

6

41435

Oil Plug

7

79266

Feed Sleeve O-ring

8

36275

Body

9

98941

Key

10

36287

Inserting Bar

11

92926

SetScrew

12

36347

Coupler Sleeve

13

36297

Gasket

14

51263

Plug

15

501679

Feed Sleeve







16

88477

Feed Nut And Yoke Assembly (Includes 17 And 18)

36444

PinOnly

48610

Ring Only

504225

Chain Only

94005

Rivet Only

17

50133

Washer (2)

18

79745

Sems Fastener (2)

19

503287

Collar Pin

Wood storage chest 302549 (not shown)
NOTE: These illustrations are for parts identification only.
DO NOT use these illustrations for assembly or disassembly of machine.
Contact Mueller Customer Service Center for assistance.
