Mueller® A3 and B-101-99007 Drilling & Tapping Machine Special Use Equipment.

_
Catalog PDF



B-101-99007 Drilling & Tapping Machine Equipment for Special Uses

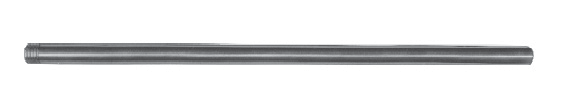

Ratchet Handle Extension:
Part Number: 500684 – Extends length of ratchet handle to give more leverage when hand opening.

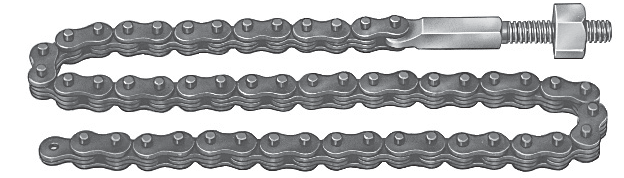

Flat Link Chain with Eyebolt and Nut:

Part Number: 580551 – For pipe up to 12".

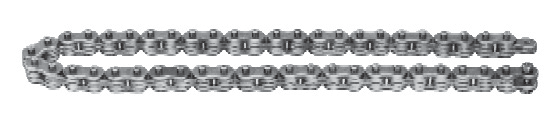

Flat Link Extension Chain with Bolts and Nuts:

Part Number: 89059 – 4' (1.2m) extension chain increases 12" (305mm) chain to fit 12"-24" pipe.
Part Number: 88126 – 6' (1.8m) extension chain increases 12" (305mm) chain to fit 12"-36" pipe.
Part Number: 88127 –10' (3.0m) extension chain increases 12" (305mm) chain to fit 12"-48" pipe.


Flat Chain Hook with Nut:

Part Number: 580550 Chain hook with nut.


Chain Spreader:

Part Number: 40321
Used when tapping pipe 3" or smaller to spread the chain so that it will clear the lower edge of the body of the machine.

A3 Drilling & Tapping Machine Equipment for Special Uses

Flat Link Chain with Eyebolt and Nut:
Part Number: 580551 – For pipe up to 12".


Flat Link Extension Chain with Bolts and Nuts:

Part Number: 82314 – increases 16" chain to fit 16"-24" pipe.
Part Number: 81028 – increases 16" chain to fit 16"-36" pipe.
Part Number: 81029 –increases 16" chain to fit 16"-48" pipe.


Chain Spreader:

Part Number: 40321
Used when tapping pipe 6" or smaller to spread the chain so that it will clear the lower edge of the body of the machine.
