C1-36 Equipment for Line Stopper Fittings

C1-36 Equipment for Line Stopper Fittings

Mueller® C1-36 Drilling Machine Equipment, including:

  • Shell Cutters, Pilot Drills and Cutter Hubs used to install Mueller Line Stopper Fittings.
  • Line Stopper adapters
  • Drilling and cutting tools
  • Drilling Machine flanged adapters

_
Catalog PDF

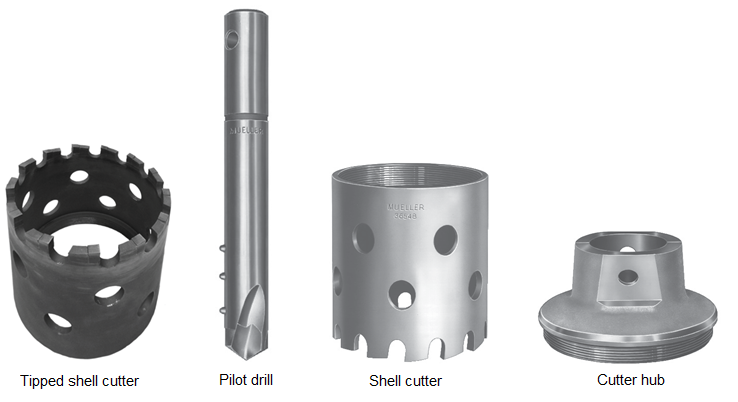

C1-36 Drilling Machine Shell Cutters, Pilot Drills and Cutter Hubs used to install Mueller Line Stopper Fittings:

These shell cutters, pilot drills and cutter hubs are used with the Mueller C1-36 drilling machine to install 3"-12" Mueller line stopper fittings.

Test description

Shell cutters, hubs and pilot drills:



Line stopper unit number

2

2, 3SW and 3SW-500

3, 3SW and 3SW-500

4SW

Line stopper fitting size*

3"

4"

6"

6" (thin wall)

8"

8" (thin wall)

10" and 12"

Size of shell cutter---------------->

3-1/4"

4-1/4"

6-1/4"

6-1/2"

8-1/4"

8-1/2"

12-1/2"

Equipment

Tipped shell cutter

682879

682885

682876

682877

682878

682780

Shell cutter

36463

36472

36548

63146

36521

63115

Cutter hub

88101

54526

54501

83760

54653

83762

682782

Pilot drill

36464

580585

580585

83639

580586

83675

682781

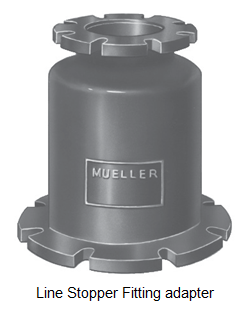

C1-36 Drilling Machine Line Stopper adapters

These adapters are required to permit the C1-36 drilling machine to be attached to MUELLER gate valves when cutting 3"-12" Mueller line stopper fittings.

Line stopper unit number

No. 2

No. 3

No. 3SW

No. 3SW-500

4SW

Size of fitting*

3" and 4"

6" and 8"

4", 6" and 8"

4", 6" and 8"

10" and 12"

Adapter part number

36343

36545

36545

83730

83323

Maximum working pressure*

275 psi

275 psi

275 psi

500 psi

500 psi

* Nominal size

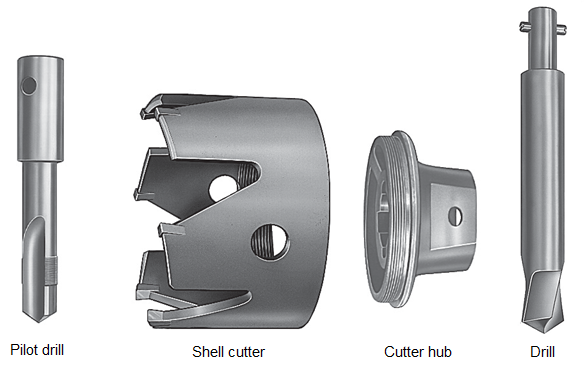

C1-36 Drilling Machine drilling and cutting tools

The MUELLER C1-36 Drilling Machine equipment shown below is used to cut through MUELLER Save-A-Value® Drilling Nipples, Extension Stopper Fittings, and Flanged Tees.

Shell cutters, hubs and drills:

Material of pipe to be cut

Equipment

Sizes* of fitting

3"

4"

6"

8"

10"

12"

Size of shell cutter---------------->

2-1/2"

3-1/2"

5-1/2"

7-1/2"

-

-

Cast or

ductile iron pipe

Shell cutter

51899

51903

63787

51897

-

-

Cutter hub

88338

88340

63978

33996

-

-

Pilot drill

33976

33976

59845

64245

-

-

Size of shell cutter---------------->

2-1/2"

3-1/2"

5-1/2"

7-1/2"

9-1/2"

10-13/16"

Steel pipe

Shell cutter

33518

33519

36004

33999

33244

33243

Cutter hub

88338

88340

63978

33996

33250

33107

Pilot drill

33976

33976

36005

64244

36338

36338

C1-36 Drilling Machine flanged adapters

These adapters are required to permit the C1-36 Drilling Machine to be attached to tap through flanged tees. Extension stopper fittings and Save-A-Valve drilling nipples.



Adapter description

Maximum working pressure**

Sizes* of fitting

3"

4"

6"

8"

10"

12"

Steel flanged adapter with class 150 inlet flange

275 psi @ 100ºF

89433

89434

89435

89436

89437

89438

Steel flanged adapter with class 300 inlet flange

600 psi @ 100ºF

89440

89441

89442

89443

89444

89445

Steel flanged adapter with class 400 inlet flange

800 psi @ 100ºF

89440

89441

89442

89443

89444

89445

Steel flanged adapter with class 600 inlet flange

1200 psi @ 100ºF

89440

89446

89447

89448

89449

89450

*Nominal size
** This is the maximum working pressure of the adapter at 100°F (38°C). This maximum working pressure must be reduced accordingly if any attachment, valve, fitting or machine subjected to pressure during the use of this adapter, has a maximum working pressure less than that specified above.
