Unit No. 2 Completion Equipment

Unit No. 2 Completion Equipment

Mueller® Unit No. 2 Completion Equipment, inlcuding:

  • Alignment Tool
  • Mueller E-Z Release® Inserting Tool
  • Extracting Tool
  • Completion Plug Wrench
  • Thread Cleaning Tool
  • Inserting Bar Extension Spacer And Sleeve

_
Catalog PDF



Alignment Tool

Alignment tools are used with the completion plug to align the line stopper machine and equipment with the installed line stopper fitting, flanged tee or Save-A-Valve® Drilling Nipples.

Tool Complete

Fork

Collar

Set Screw

Set Screw

Spring

Shank

83522

53858

53507

97970

502754

46696

53859



Mueller E-Z Release® Inserting Tool

Inserting tools are used to insert completion plugs in Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.

Tool Complete

Fork

Collar

Set Screw

Spring

Shank

83520

53509

53507

97970

46696

53490

Extracting Tool

Extracting tools are used to remove completion plugs from Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.

Tool Complete

Fork

Collar

Set Screw

Spring

Shank

83521

53508

53507

97970

46696

53490



Completion Plug Wrench

Completion plug wrench is used to “final” tighten the completion plug before the completion cap is attached and is also used to “break” the plug loose prior to removal using the extracting tool.

Tool Complete - 36404

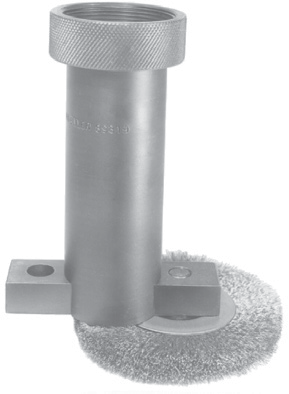

Thread Cleaning Tool

Thread cleaning tool is used to remove any pipe chips or other drilling debris from the completion plug threads in the fitting prior to installation of the completion plug.

Size

Tool Complete

Shank

Washer

Hex Cap Screw

Brush

Spacer Bar

Bolt

Coupling Nut

3"

89316

503953

45556

98570

305744

503936

503955

-

4"

89317

503953

45556

98570

301919

503954

503955

46694

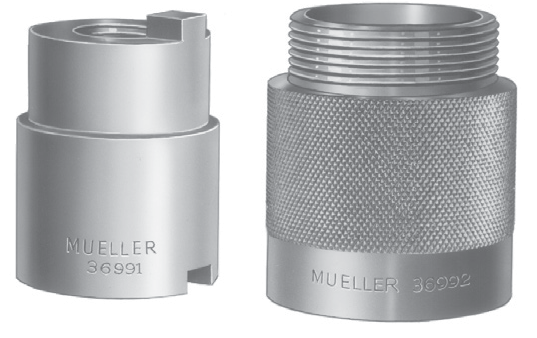

Inserting Bar Extension Spacer And Sleeve

The inserting bar extension spacer and sleeve are used together to increase the stopping machine inserting bar length for stopping off certain fittings, tees and nipples.

Size*

Inserting Bar Extension Spacer

Inserting Bar Extension Sleeve

3"

505554

505555

4"

79403*

79402*

The 4" spacer and sleeve are only used with 4" Class 300 and above.
*Nominal size
