Unit No. 3 Completion Equipment

Unit No. 3 Completion Equipment

Mueller® Unit No. 3 Completion Equipment, inlcuding:

  • Alignment Tool
  • Mueller E-Z Release® Inserting Tool
  • Extracting Tool
  • Completion Plug Wrench
  • Thread Cleaning Tool
  • Inserting Bar Extension Spacer And Sleeve

_
Catalog PDF

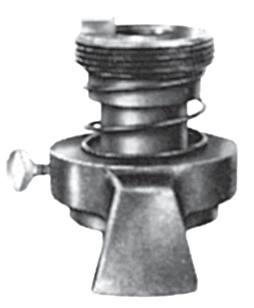

Alignment Tool

Alignment tools are used with the completion plug to align the line stopper machine and equipment with the installed line stopper fitting, flanged tee or Save-A-Valve® Drilling Nipples.

Tool Complete

Fork

Collar

Set Screw

Set Screw

Spring

Shank

83519

53862

46695

53857

98429

46696

53861



Mueller E-Z Release® Inserting Tool

Inserting tools are used to insert completion plugs in Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.

Tool Complete

Fork

Collar

Set Screw

Spring

Shank

83517

46697

46695

98429

46696

53513

Extracting Tool

Extracting tools are used to remove completion plugs from Mueller line stopper fittings, flanged tee or Save-A-Valve® Drilling Nipples under pressure.

Tool Complete

Fork

Collar

Set Screw

Spring

Shank

83518

46698

46695

98429

46696

53513



Completion Plug Wrench

Completion plug wrench is used to “final” tighten the completion plug before the completion cap is attached and is also used to “break” the plug loose prior to removal using the extracting tool.

Tool Complete - 36404

Thread Cleaning Tool

Thread cleaning tool is used to remove any pipe chips or other drilling debris from the completion plug threads in the fitting prior to installation of the completion plug.

Size*

Tool Complete

Shank

Washer

Hex Cap Screw

Brush

Spacer Bar

Bolt

Coupling Nut

6" & 8"

89318

503953

45556

98570

301919

503956

503955

-



Inserting Bar Extension Spacer And Sleeve

The inserting bar extension spacer and sleeve are used together to increase the stopping machine inserting bar length for stopping off certain fittings, tees and nipples.

Size*

Inserting Bar Extension Spacer

Inserting Bar Extension Sleeve

6" & 8"

36991

36992

The 4" spacer and sleeve are only used with 4" Class 300 and above.

Tool Adapter

This tool adapter is used for certain applications to adapt the stopping machine inserting bar to alignment, inserting and extracting tools.

Tool Complete: 37197

*Nominal size
