Mueller Wedgeseal® Insulation Unions 2/3 Type and Full-Type.

_
Catalog PDF



MUELLER WEDGESEAL INSULATED UNIONS†

Series 1 FIP (175 psig (1206 kPa) working pressure)

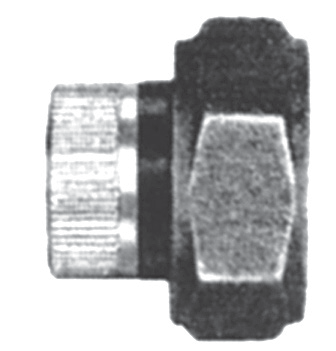

2/3-Type



Catalog Numbers

700701

700728

700702

700729

700724

Nut & Head

Black

Galavan.

Black

Galvan.

Black

FIP Pipe Thread

3/4"

3/4"

1"

1"

1-1/4"

Box Quantity













MUELLER WEDGESEAL INSULATED UNIONS†

Series 3 FIP x FIP O-Ring seal (175 psig (1206 kPa) working pressure).

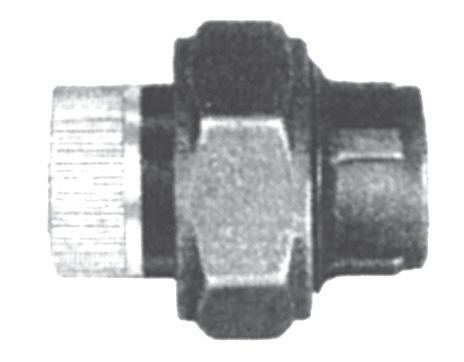

Full-Type



Catalog Numbers

700832

700836

700838

700839

Nut & Head

Black

Black

Black

Galvan.

FIP Pipe Thread

3/4"

1"

1-1/4"

1-1/4"



MUELLER WEDGESEAL INSULATED UNIONS†

Series 1 FIP x FIP
Flat Gasket Seal (175 psig (1206 kPa) working pressure)
Full-Type



MUELLER WEDGESEAL INSULATED UNIONS†

Series 3
MIP tail piece x FIP head O-Ring Seal
(175 psig (1206 kPa) working pressure)
Full-Type



† Tailpiece of Wedgeseal® insulated union is brass. A 3/4” female NPT tailpiece is available in zinc plated steel.
