H-17012

Mueller® H-17012 NO-BLO® Valve Changer for 1-1/2" & 2" meter valves on sch. 40 steel.

Catalog number: H-17012

Features:

  • For changing out 1-1/2" and 2" Meter Valves installed on schedule 40 steel pipe
  • Includes two plugging units, safety clamp, wooden storage chest (680288), Rubber Stopper Lubricant (580567), (1) extra Rubber plug for each size unit, and operating instructions (Form 8540)
  • Fits most roundway and straightway valves
  • O-ring sealed body and stem
  • Maximum working pressure 60 psig** (414 kPa)
**This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

_
Catalog PDF







Demonstration Video





Dimensions:

The H-17012 plugging units can be used on valves (roundway or straightway) that have minimum port dimensions charted to the right, and if the outlet of the valve has F. I. P. threads.

Valve Size*

Minimum Port Width

Minimum Port Height

1-1/2"

25/32"

1-19/32"

2"

1-5/32"

2"

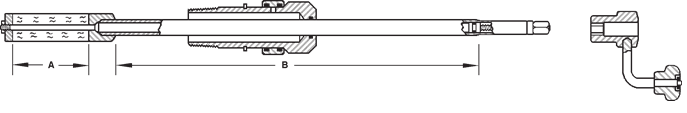

Size* of Plugging Unit

1-1/2"

2"

Plugging unit Part number

83805

83928

a length of Rubber Plug

4-1/8"

3-1/8"

B length from Ferrule Shoulder to taper

17-7/16"

17-7/16"

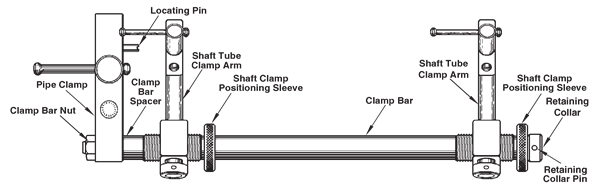

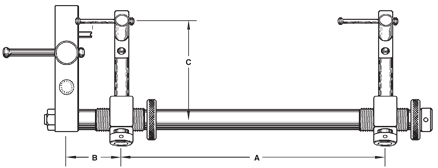

Safety Clamp:




Safety Clamp Part Number

A

B

C

83792

17-7/16"

2-15/16"

6-5/16"

*nominal
** This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

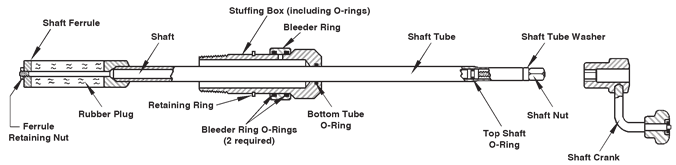

H-17012 Valve Changer Replacement Parts:




Part Name

Plugging Unit Size*

1-1/2"

2"

2"

Plugging Unit Complete

83805

83928

681431    (36")

Stuffing Box assembly

83807

83943

83943

Bottom Tube O-ring

79344

503726

503726

retaining ring

500567

501204

501204

Bleeder ring

500568

501177

501177

Bleeder O-ring (2)

78828

501205

501205

Shaft crank assembly

83806

501181

501181

Shaft Nut

51101

501180

501180

Shaft Tube Washer

51110

501182

501182

Top Shaft O-ring

79514

78818

78818

Shaft Tube assembly

83803

83942

681432

Shaft assembly

83808

83941

681433

Rubber Plug

500561

501183

501183

Shaft Ferrule

500560

501179

501179

Shaft Ferrule Retaining nut

53863

53935

53935


Part Name

Part Number

Safety Clamp Complete

83792

682732 - extended length

Retaining Collar

500582

500582

Retaining Collar Pin

500580

500580

Shaft clamp Positioning Sleeve (2)

500576

500576

Shaft Tube Clamp Arm Assembly (2)

83793

83793

Clamp Bar

500585

537486

Pipe Clamp Assembly

83798

83798

Locating Pin (0.875" length)

50763

50763

Clamp Bar Spacer

500575

500575

Clamp Bar Nut

33571

33571

*nominal
** this is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.
