H-17013

Mueller® H-17013 NO-BLO® Valve Changer for 3/4", 1", & 1-1/4" meter valves on sch. 80 steel.

Catalog number: H-17013

Features:

  • For changing out 3/4", 1" and 1-1/4" Meter Valves installed on schedule 80 steel pipe
  • Includes Three Plugging Units, Safety Clamp, Wooden Storage Chest (680350), Rubber Stopper Lubricant (580657), (1) extra Rubber Plug for each size unit, and Operating Instructions (Form 8540)
  • Fits most roundway and straightway valves
  • O-ring sealed body and stem
  • Maximum working pressure 60 psig** (414 kPa)
**This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

_
Catalog PDF







Demonstration Video





Dimensions:

The H-17013 plugging units can be used on valves (roundway or straightway) that have minimum port dimensions charted to the right, and if the outlet of the valve has F.I.P. threads.

ValveSize*

Minimum Port Width

Minimum Port Height

3/4"

13/32"

23/32"

1"

17/32"

31/32"

1-1/4"

11/16"

1-9/32"





Size* of Plugging Unit

3/4"

1"

1-1/4"

Plugging unit Part number

83962

580530

580531

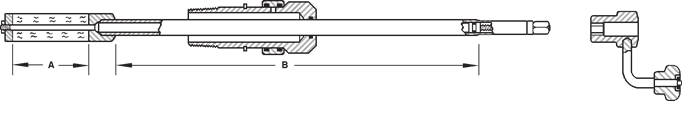

a length of Rubber Plug

2"

2-5/8"

3-3/8"

B length From Ferrule Shoulder to taper

12-9/16"

12-9/16"

12-9/16"

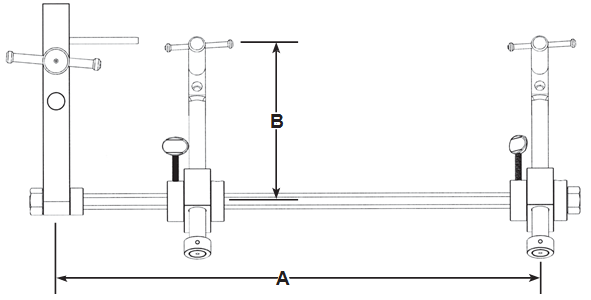

Safety Clamp:



Safety Clamp Part Number

A

B

682597

20"

6-1/2"


*nominal
** This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

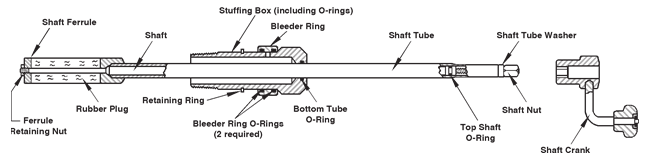

H-17013 Valve Changer Replacement Parts:




Part Name

Plugging Unit Size*

3/4"

1"

1-1/4"

Plugging Unit Complete

83962

580530

580531

Stuffing Box Assembly

83281

83282

83283

Bottom Tube O-ring

79514

72239

79344

Retaining Ring

53777

50990

51014

Bleeder Ring

50936

50947

51003

Bleeder O-ring (2)

40709

79351

79479

Shaft Crank Assembly

83276

83277

83278

Shaft Nut

51134

51249

51101

Shaft Tube Washer

51159

51059

51110

Top Shaft O-ring

53856

43973

79514

Shaft Tube Assembly

83966

83968

580392

Shaft Assembly

83965

83967

580391

Rubber Plug

51243

501139

501140

Shaft Ferrule

51189

501136

51106

Shaft Ferrule Retaining Nut

52969

53832

53863

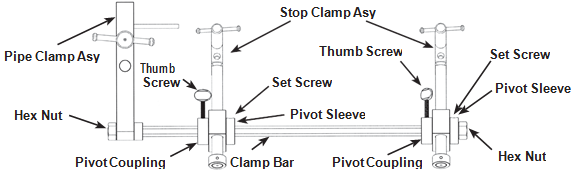

Part Name

Qty Req'd

Part Number

Safety Clamp Complete



682597

Pivot Sleeve

2

537866

Set Screw

2

97763

Pivot Coupling

2

537865 (Pivot coupling)

Shaft Tube Clamp Arm Assembly (2)

2

682854

Clamp Bar

1

682598

Pipe Clamp Assembly

1

83977

Short Locating Pin (2.875" length)

1

501282

Long Locating Pin (4.375" length)

1

501283

Thumb Screw

2

95297

Hex Nut

2

94825


*nominal
