H-17014

Mueller® H-17014 NO-BLO® Valve Changer for 1-1/2" & 2" meter valves on sch. 80 steel.

Catalog number: H-17014

Features:

  • For changing out 1-1/2" and 2" meter valves installed on schedule 80 steel pipe
  • Includes safety clamp, wooden storage chest (680288), Rubber Stopper Lubricant (580567), (1) extra Rubber plug for each size unit, and operating instructions (Form 8540)
  • Fits most roundway and straightway valves
  • O-ring sealed body and stem
  • Maximum working pressure 60 psig** (414 kPa)
**This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

_
Catalog PDF





Demonstration Video





Dimensions:

The H-17014 plugging units can be used on valves (roundway or straightway) that have minimum port dimensions charted to the right, and if the outlet of the valve has F.I.P. threads.

Valve Size*

Minimum Port Width

Minimum Port Height

1-1/2"

25/32"

1-19/32"

2"

1-5/32"

2"



Size* of Plugging Unit

1-1/2"

2"

Plugging unit part number

580630

580750

a length of rubber plug

4-1/8"

3-1/8"

B length from ferrule shoulder to taper

17-7/16"

17-7/16"

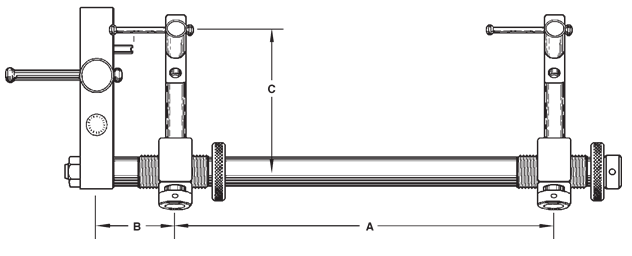

Safety Clamp:

Safety Clamp Part Number

A

B

C

83792

17-7/16"

2-15/16"

6-5/16"

*Nominal
** This is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.

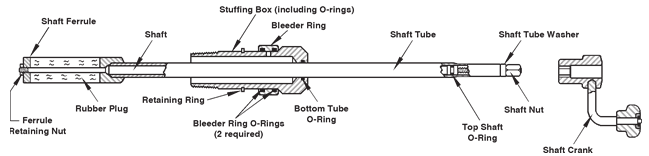

H-17014 Valve Changer Replacement Parts:




Part Name

Plugging Unit Size*

1-1/2"

2"

Plugging Unit Complete

580630

580750

Stuffing Box assembly

83807

83943

Bottom Tube O-ring

79344

503726

Retaining ring

500567

501204

Bleeder ring

500568

501177

Bleeder O-ring (2)

78828

501205

Shaft crank assembly

83806

501181

Shaft Nut

51101

501180

Shaft Tube Washer

51110

501182

Top Shaft O-ring

79514

78818

Shaft Tube assembly

580631

580749

Shaft assembly

83808

83941

Rubber Plug

502044

502414

Shaft Ferrule

502045

502415

Shaft Ferrule Retaining nut

53863

53935

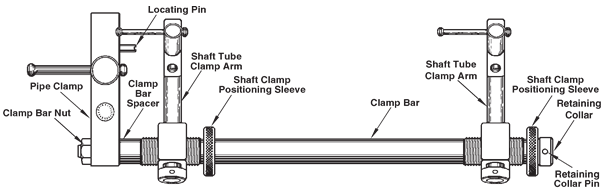

Part Name

Part Number

Safety Clamp Complete

83792

retaining Collar

500582

Retaining collar Pin

500580

Shaft clamp Positioning Sleeve (2)

500576

Shaft tube clamp arm assembly (2)

83793

Clamp Bar

500585

Pipe clamp assembly

83798

Locating Pin (0.875" length)

50763

Clamp Bar Spacer

500575

Clamp Bar Nut

33571


*nominal
** this is the maximum working pressure of this equipment. During the use of this equipment, the line pressure must not exceed the amount indicated.
