Mueller® B-31179 Centurion II™ Gas Meter Ball Valves.

Catalog number: B-31179

Features:

  • Sizes* – 3/4", 1"
  • Meets test requirements specified in ASME B16.33
  • Tamper proof design
  • Ductile iron body
  • Dual O-ring sealed stem
  • Integral locking cap
  • Cationic Epoxy Electrocoat inside and outside
  • PTFE seats
  • Nickel/Chrome plated brass ball
  • Insulated union outlet
  • 200 psig (1380 kPa)
  • Available finishes: 1-step gray epoxy
*Nominal
†All meter valves are sold in complete box quantity only.

_
Catalog PDF

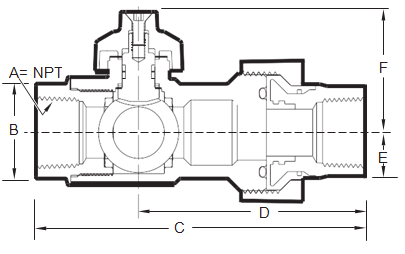

B-31179 Mueller Centurion II Meter Valve Dimensions:

Dimension

Valve Size*

3/4"

1"

A

3/4"

1"

B

1-29/64"

1-7/8"

C

5-1/6"

5-17/32"

D

3-29/64"

3-23/32"

E

49/64"

15/16"

F

1-53/64"

1-63/64"



B-31179

Box Quantity

3/4"

20

1"

16



Replacement Parts
  3/4" 1"
Steel tail piece/union 83993 83994
Coupling nut - E-coated 528241 528386
Coupling nut - 1-step epoxy 538460 538461
Union o-ring 40709 79351

*Nominal
