Mueller® H-11180 Luboseal® Meter Valve - 500 psig.

Catalog number: H-11180

Features:

  • Sizes* – 3/4", 1", 1-1/4"
  • Meets the test requirements specified in ASME B16.33
  • Ductile iron body valve
  • Plain head
  • Special lubrication system---can be re-lubricated under pressure
  • Quad-ring sealed key
  • Tamperproof feature
  • Inlet and outlet with recessed internal I.P. (F.I.P.) thread
  • Available finishes: black (as cast), galvanized, electro-coat epoxy gray, electro-coat Rustoleum gray
  • 500 psig (3450 kPa)
  • Available with 1/8" test port feature
*Nominal
†All meter valves are sold in complete box quantity only.

_
Catalog PDF



Mueller® H-11180 Luboseal® Meter Valve Dimensions:

Dimension

Valve Size*

1/2"

3/4"

1"

1-1/4"

1-1/2"

2"

A

1/2"-14

3/4"-14

1-11/12"

1-1/4"-11-1/2

1-1/2"-11-1/2

2"-11-1/2

B

1-1/2"

1-29/32"

2-15/64"

2-43/64"

3-7/64"

3-41/64"

C

2-13/16"

3-5/32"

3-13/16"

4-1/4"

4-5/8"

5-9/32"

D

1-13/32"

1-37/64"

1-29/32"

2-1/8"

2-5/16"

2-41/64"

E

1-37/64""

1-31/32"

2-5/32"

2-9/16"

2-11/16"

3-17/64"

F

1-9/32"

1-39/64"

1-57/64"

2-3/16"

2-35/64"

2-31/32"

G

3/4"

59/64"

1-11/64"

1-27/64"

1-19/32"

1-29/32"





H-11180

Box Quantity

3/4"

10

1"

6

1-1/4"

6



*Nominal

Optional Equipment:

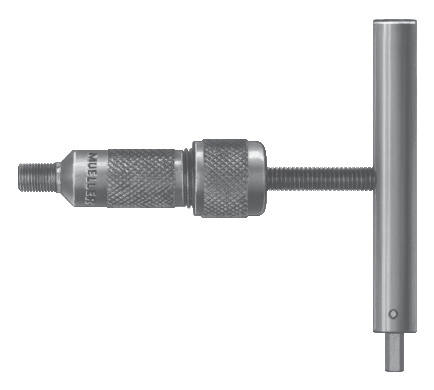

H-11199 Relubricating Tool
Used to relubricate Mueller Luboseal Meter Valves with H-853 lubricant shown below. A hex wrench is built into the tool handle for removal of valve lubricating port pipe plug. One tool fits all valve sizes.




H-853 Ground Key Lubricant
Used for dry, natural or manufactured gas, air and vacuum applications. NOT recommended for petroleum solvents, mineral oils or concentrated acids or alkalies. Box of 24 #1 sticks.
