Mueller® H-18104 Autoperf® Tee.

Catalog number: H-18104

Features:

  • Weld x fusion - 5/16" or 3/8" tip
  • Sizes* – 1/2" x 1/2" MD CTS
    • 3/4" x 1/2" MD CTS
    • 3/4" x 1/2" HD CTS
    • 3/4" x 1/2" MD IPS
    • 3/4" x 1/2" HD IPS
    • 3/4" x 3/4" MD CTS
    • 3/4" x 3/4" MD IPS
    • 3/4" x 3/4" HD IPS
    • 3/4" x 1" MD CTS
    • 3/4" x 1" MD IPS
    • 3/4" x 1" HD IPS
  • Conforms to ASTM D638 and DOT192.285
  • Forged Steel Body ASTM A105
  • Steel Completion Cap AISI 12L14
  • Shell Perforator specially heat treated - 5/16" or 3/8" tip (see dimension "E" in chart below)
  • Fusion epoxy coating resists corrosion
*First size is size of inlet, second is size of outlet.

_
Catalog PDF

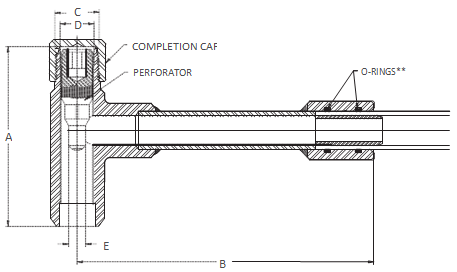

Dimensions:

Dimensions

Size* of AUTOPERF Tee



1/2" x 1/2"

3/4" x 1/2"

3/4" x 3/4"

3/4" x 1"

A

3-3/4"

4"

4"

4"

B

6-11/16"

6-1/2"

6-3/4"

7"

C

1/2"

3/4"

3/4"

3/4"

D

37/64"

49/64"

49/64"

49/64"

E

5/16"

3/8"

3/8"

3/8"

Perforator Tip size / hex drive size

5/16" / .317"

3/8" / .385"

3/8" / .385"

3/8" / .385"

Maximum wall thickness of pipe that perforator will cut

.281"

.281"

.281"

.281"



Replacement Parts:

Replacement Parts

Size* of AUTOPERF Tee



1/2" x 1/2"

3/4" x 1/2"

3/4" x 3/4"

3/4" x 1"

Completion Cap

503142

502199

502199

502199

Perforator

505924

505205

505205

505205



No additional lubrication of any kind is needed to prepare the perforator for use before installation.

*First size is size of inlet, second is size of outlet.
