Mueller® H-18197 Autoperf® Tee.

Catalog number: H-18197

Features:

  • Weld x 5/8" Mueller 110® - 3/8" tip
  • Sizes* – 1/2" x 5/8"
  • Forged Steel Body ASTM A105
  • Steel Completion Cap AISI 12L14
  • Steel Perforator specially heat treated - 3/8" tip
  • Weld inlet
  • Mueller 110® Compression Connection outlet for 5/8" O.D. CTS plastic tubing - furnished with insert for .090" wall tubing
  • 125** psig (862 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments.

_
Catalog PDF

Dimensions:

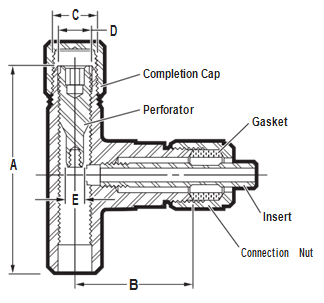

Dimensions

Size* of AUTOPERF Tee

1/2" x 5/8"

A

3-3/4"

B

2-9/64"

C

3/4"

D

37/64"

E

3/8"

Perforator Tip size / hex drive size

3/8" / .385"

Maximum wall thickness of pipe that perforator will cut

.250"



Replacement Parts:

Replacement Parts

Size* of AUTOPERF Tee

1/2" x 5/8"

Completion Cap

525386

Perforator

505925



No additional lubrication of any kind is needed to prepare the perforator for use before installation.

*First size is size of inlet, second is size of outlet.
