Mueller® NO-BLO® H-17900 Curb Stop Tee.

Catalog number: H-17900

Features:

  • Weld x weld - 1200 psig
  • Sizes* – 1" x 1"
  • Forged Steel Body ASTM A105
  • Steel Completion Cap AISI 12L14
  • Stainless Steel Stem
  • Inlet and outlet prepared for butt weld same size as tee and socket weld one size smaller than tee
  • 1200** psig (8273 kPa)
*For tees with a 2” square operating head, use H-17900-99003.
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

_
Catalog PDF







How to select equipment:

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 Slide Gate Valve, H-10918 Steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be differ- ent for each operation.

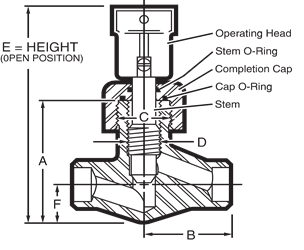

Dimensions:

Dimensions

Size* of Curb Stop Tee

1" x 1"

A

3-3/4"

B

2-1/2"

C

1-1/4"

D

1"

E

7-1/2"

F

1-1/8"




Replacement Parts:

Replacementparts

Size* of Curb Stop Tee

1" x 1"

Completion Cap

525385

Stem

52656

Operating Head

79340

Stem O-ring

79344

Cap O-ring

79345

Completion Cap Screw

504550

*First size is size of inlet, second is size of outlet.

E-5™/EH-5™ Machine

H-17900

1"

1"

1"

Control Valve

H-10914  1-1/4"

H-17025

H-10918  1-1/4"

Bushing

-

78830   1-1/4"

-

Installation

Test Cap

79160 CI/
537399 Steel

79160 CI/
537399 Steel

79160 CI/
537399 Steel

Inserting







MAOP*

125 psig

125 psig

E-5=500 psig

EH-5=1200 psig

Machine Adapter

36733

-

36733

Inserting Tool

83256

83256

83256

Extracting

MAOP*

125 psig

125 psig

E-5=500

EH-5=1200

Machine Adapter

36733

-

36733

Extracting Tool

88279

88279

88279

Optional Tools

Machine Adapter

36733

-

36733

Reseating Reamer

72240

72240

72240

Holder for Reamer

61981

61981

61981

Boring Bar Extension

-

51364

-

D-5™/DH-5™ Machine

H-17900

1"

1"

Control Valve

H-10914  1-1/4"

H-10918  1-1/4"

Installation

Test Cap

79160

79160

Inserting

MAOP*

125 psig

D-5=500 psig

DH-5=1200 psig

Machine Adapter

36195

36195

Inserting Tool

83256

83256

Boring Bar Adapter

40438

40438

Extracting

MAOP*

125 psig

D-5=500 psig

DH-5=1200 psig

Machine Adapter

36195

36195

Extracting Tool

88279

88279

Tool Adapter

36198

36198

Optional Tools

Machine Adapter

36195

36195

Reseating Reamer

72240

72240

Holder for Reamer

36998

36998



*Maximum Allowable Operating Pressure
