H-18052

Mueller® H-18052 Autosafe® Tee.

Catalog number: H-18052

Features:

  • Weld x weld - size 500
  • Sizes* – 3/4" x 3/4"
  • Mueller GAs-PHusE® Device size 500
  • Forged steel body AsTM A105
  • steel completion cap AIsI 12L14
  • Bronze completion plug/Gas-Phuse assembley
  • Weld inlet
  • Outlet prepared for butt weld same size as outlet and socket weld one size smaller than outlet
  • 1440** psig (9930 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

_
Catalog PDF

How to select equipment:

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 slide Gate Valve, H-10918 steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be differ- ent for each operation.

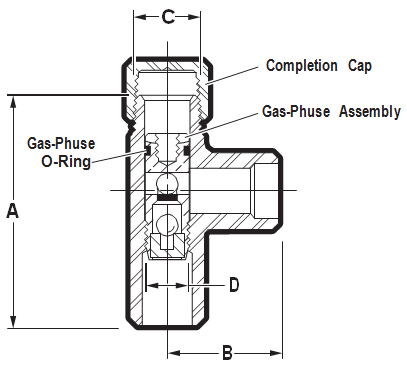

Dimensions:

Dimensions

Size* of Autosafe Tee

3/4" x 3/4"

A

3-5/8"

B

1-3/4"

C

3/4"

D

3/8"



Replacement Parts:

Replacement Parts

Size* of Autosafe Tee

3/4" x 3/4"

Completion Cap

504405

stem/GAs-PHusE

580677

*First size is size of inlet, second is size of outlet.

E-5™/EH-5™ Machine

H-18052

3/4"

3/4"

3/4"

Control Valve

H-10914  1-1/4"

H-17025

H-10918  1-1/4"

Bushing

-

502232

-

Installation

Test Cap

51361

51361

51361

Drilling

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Power Operator

H-604

H-604

H-604

Machine Adapter

36733

-

36733

Reducing Bushing

49681

502232

49681

Drill

502517    1/2"

502517    1/2"

502517    1/2"

Drill Holder

502501

502501

502501

Guide Nut

502503

502503

502503

Cutting Grease

88366

88366

88366

Honing stone

682560

682560

682560

Stopping

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Machine Adapter

36733

-

36733

Reducing Bushing

49681

502232

49681

steel shut Off Tool

502260

502260

502260

Inserting

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Machine Adapter

36733

-

36733

Reducing Bushing

49681

502232

49681

EZ Release Tool

580760

580760

580760

Extracting

MAOP*

125 psig

125 psig

E-5 = 500 psig

EH-5 = 1200 psig

Machine Adapter

36733

-

36733

Reducing Bushing

49681

502232

49681

Extracting Tool

580759

580759

580759



D-5™/DH-5™ Machine

H-18052

3/4"

3/4"

Control Valve

H-10914  1-1/4"

H-10918  1-1/4"

Bushing

-

-

Installation

Test Cap

51361

51361

Drilling

MAOP*

125 psig

D-5 = 500 psig

DH-5 = 1200 psig

Power Operator

H-604

H-604

Machine Adapter

36195

36195

Reducing Bushing

49681

49681

Drill

40397    1/2"

40397    1/2"

Drill Holder

36324

36324

Cutting Grease

88366

88366

Honing stone

682560

682560

Stopping

MAOP*

125 psig

D-5 = 500 psig

DH-5 = 1200 psig

Machine Adapter

36195

36195

steel shut Off Tool

502260

502260

Boring Bar Adapter

40438

40438

Inserting

MAOP*

125 psig

D-5 = 500 psig

DH-5 = 1200 psig

Machine Adapter

36195

36195

Reducing Bushing

49681

49681

EZ Release Inserting Tool

580760

580760

Boring Bar Adapter

40438

40438

Extracting

MAOP*

125 psig

D-5 = 500 psig

DH-5 = 1200 psig

Machine Adapter

36195

36195

Reducing Bushing

49681

49681

Extracting Tool Adapter

52598

52598

Extracting Tool

580759

580759



*Maximum Allowable Operating Pressure
