Mueller® NO-BLO® H-17674 Service Stop Tee.

Catalog number: H-17674

Features:

  • Weld x F.I.P. - 250 psig
  • Sizes* – 1" x 3/4", 1-1/4" x 1-1/4"
  • Forged Steel Body ASTM A105
  • Cast Iron Completion Cap ASTM A126 CL.B
  • Stainless Steel Stem and Bronze Bushing
  • Weld inlet
  • Internal (F.I.P.) thread outlet
  • 250** psig (1724 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

_
Catalog PDF







How to select equipment:

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 Slide Gate Valve, H-10918 Steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be different for each operation.

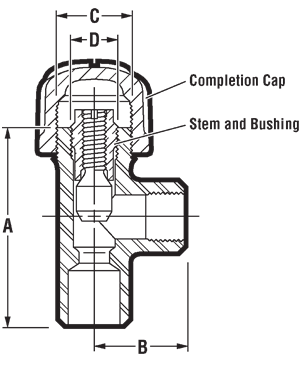

Dimensions:



Dimensions

Size* of Service Stop Tee

1" x 3/4"

1-1/4" x 1-1/4"

A

4-1/8"

4-3/4"

B

1-7/8"

3-3/8"

C

1-1/4"

1-1/2"

D

3/4"

1"



Replacement Parts:



Replacement Parts

Size* of Service Stop Tee

1" x 3/4"

1-1/4" x 1-1/4"

Completion Cap

501075

501076

Stem & Bushing

38191 & 38192

38418 & 38417

*First size is size of inlet, second is size of outlet.

E-5™/EH-5™ Machine

H-17674

1"

1"

1"

1-1/4"

1-1/4"

1-1/4"

Control Valve

H-10914   1-1/4"

H-17025

H-10918   1-1/4"

H-10914  1-1/2"

H-17025

H-10918   1-1/2"

Bushing

-

78830  1-1/4"



-

78830   1-1/2"

-

Installation

Center Locating Punch

H-17615

H-17615

H-17615

H-17615

H-17615

H-17615

Test Cap

79160

79160

79160

79161

79161

79161

Completion Plug Wrench

96536

96536

96536

56680

56680

56680

Drilling

MAOP*

125 psig

125 psig

250 psig

125 psig

125 psig

250 psig

Power Operator

H-604

H-604

H-604

H-604

H-604

H-604

Machine Adapter

36733

-

36733

503435

501609

78737

Drill

61982   5/8"

61982   5/8"

61982   5/8"

61990   7/8"

61990   7/8"

61990   7/8"

Drill Holder

61981

61981

61981

78736

78736

78736

Cutting Grease

88366

88366

88366

88366

88366

88366

Honing Stone

682560

682560

682560

682560

682560

682560

Inserting

MAOP*

125 psig

125 psig

250 psig

125 psig

125 psig

250 psig

Machine Adapter

36733

-

36733

503435

501609

78737

EZ Release Inserting Tool

83261

83261

83261

83400

83400

83400

Extracting

MAOP*

125 psig

125 psig

250 psig

125 psig

125 psig

250 psig

Machine Adapter

36733

-

36733

503435

501609

78737

Extracting Tool

80088

80088

80088

89061

89192

89061

Optional Tools

Machine Adapter

36733

-

36733

503435

501609

78737

Reseating Reamer

72240

72240

72240

72241

72241

72241

Holder for Reamer

61981

61981

61981

78736

61993

78736

D-5™/DH-5™ Machine

H-17674

1"

1"

1-1/4"

1-1/4"

Control Valve

H-10914    1-1/4"

H-10918    1-1/4"

H-10914    1-1/2"

H-10918    1-1/2"

Installation

Center Locating Punch

H-17615

H-17615

H-17615

H-17615

Test Cap

79160

79160

79161

79161

Completion Plug Wrench

96536

96536

90812

90812

Drilling

MAOP*

125 psig

250 psig

125 psig

250 psig

Power Operator

H-604

H-604

H-604

H-604

Machine Adapter

36195

36195

36196

36196

Drill

61982    5/8"

61982    5/8"

61990  7/8"

61990  7/8"

Drill Holder

36998

36998

37032

37032

Cutting Grease

88366

88366

88366

88366

Honing Stone

682560

682560

682560

682560

Inserting

MAOP*

125 psig

250 psig

125 psig

250 psig

Machine Adapter

36195

36195

36196

36196

EZ Release Inserting Tool

83261

83261

83400

83400

Inserting Tool

33599

33599

-

-

Boring Bar Adapter

40438

40438

40438

40438

Extracting

MAOP*

125 psig

250 psig

125 psig

250 psig

Machine Adapter

36195

36195

36196

36196

Extracting Tool

88286

88286

81499

81499

Optional Tools

Machine Adapter

36195

36195

36196

36196

Reseating Reamer

72240

72240

72241

72241

Holder for Reamer

36998

36998

37032

37032

*Maximum Allowable Operating Pressure
