Mueller® NO-BLO® Service Tee M.I.P. x Weld - 250 psig.

Catalog number: H-17550

Specifications:

  • Sizes* – 3/4" x 3/4", 1" x 1", 1-1/4" x 1-1/4", 2" x 2"
  • Forged Steel Body ASTM A105
  • Cast Iron Completion Cap ASTM A126 CL.B
  • Cast Iron Completion Plug 2" x 2"
  • External (M.I.P.) thread inlet
  • Outlet prepared for butt weld same size as outlet and socket weld one size smaller than outlet
  • 250** psig (1724 kPa)
*First size is size of inlet, second is size of outlet.
**This is the maximum pressure of the fitting installed in the line at 100F for Class Locations 1, 2, 3 and 4 as defined in D.O.T./CFR TITLE 49 PART 192. It may be necessary to reduce the line pressure during the drilling, stopping or plugging operations to the maximum working pressure of the machine or its attachments. Refer to charts on following pages.

Catalog PDF

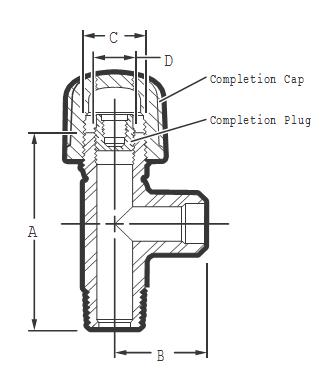

Dimensions:



Dimensions

Size*of Service Tee

3/4" x 3/4"

1" x 1"

1-1/4" x 1-1/4"

2" x 2"

A

4"

4-1/8"

4-3/8"

5-1/2"

B

1-3/4"

1-7/8"

2"

2-1/8"

C

1"

1-1/4"

1-1/2"

2"

D

1/2"

3/4"

1"

1-1/2"



Replacement Parts:



Replacement Parts

Size*of Service Tee

3/4" x 3/4"

1" x 1"

1-1/4" x 1-1/4"

2" x 2"

Completion Cap

34061

37483

38138

36310

Completion Plug

78898

34060

34122

36356

*First size is size of inlet, second is size of outlet.

How to select equipment:

  1. Find chart on following pages containing desired combination of fitting and installation machine (shown in bold type at top of each page and chart). Note: for a given fitting there may be more than one machine and chart.
  2. Under inlet size of fitting to be installed, select catalog number for type of control valve to be used. Options may include one or more of the following: H-10914 Bronze Gate Valve, H-17025 Control Chamber, H-10917 Slide Gate Valve, H-10918 Steel Ball Valve.
  3. Under selected control valve, column lists equipment necessary for each operation on chosen size of fitting. Note: MAOP (Maximum Allowed Operating Pressure) provided for each operation must not be exceeded. MAOP may be different for each operation.

E-5/EH-5 Machine

H-17550

3/4"

3/4"

3/4"

1"

1"

1"

ControlValve

H-10914   1-1/4"

H-17025

H-10918   1-1/4"

H-10914  1-1/4"

H-17025

H-10918   1-1/4"

Bushing

-

78829   1"

-

-

78830   1-1/4"

-

Installation

CenterLocatingPunch

H-17615

H-17615

H-17615

H-17615

H-17615

H-17615

TestCap

79159

79159

79159

79160

79160

79160

CompletionPlugWrench

96536

96536

96536

96536

96536

96536

Drilling

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

PowerOperator

H-604

H-604

H-604

H-604

H-604

H-604

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

Drill

61982   5/8"

61982   5/8"

61982   5/8"

-

-

-

DrillHolder

61981

61981

61981

-

-

-

CombinedDrillandHolder

-

-

-

79185   3/4"

79185   3/4"

79185   3/4"

CuttingGrease

88366

88366

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

682560

682560

Stopping

MAOP†

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

SteelShutOffTool

45628

45628

45628

36197

36197

36197

RubberShutOffTool

88757

88757

88757

88125

88125

88125

ReplacementRubber

37454

37454

37454

37629

37629

37629

HolderforRubberShutOffTool

61981

63396

61981

61789

61789

61789

RubberStopperLubricant

580657

580657

580657

580657

580657

580657

Inserting

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

EZReleaseInsertingTool

83261

83261

83261

83261

83261

83261

Extracting

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

ExtractingTool

80088

80088

80088

80088

80088

80088



E-5/EH-5 Machine

H-17550

3/4"

3/4"

3/4"

1"

1"

1"

ControlValve

H-10914   1-1/4"

H-17025

H-10918   1-1/4"

H-10914  1-1/4"

H-17025

H-10918   1-1/4"

Bushing

-

78829   1"

-

-

78830   1-1/4"

-

Installation

CenterLocatingPunch

H-17615

H-17615

H-17615

H-17615

H-17615

H-17615

TestCap

79159

79159

79159

79160

79160

79160

CompletionPlugWrench

96536

96536

96536

96536

96536

96536

Drilling

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

PowerOperator

H-604

H-604

H-604

H-604

H-604

H-604

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

Drill

61982   5/8"

61982   5/8"

61982   5/8"

-

-

-

DrillHolder

61981

61981

61981

-

-

-

CombinedDrillandHolder

-

-

-

79185   3/4"

79185   3/4"

79185   3/4"

CuttingGrease

88366

88366

88366

88366

88366

88366

HoningStone

682560

682560

682560

682560

682560

682560

Stopping

MAOP†

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

SteelShutOffTool

45628

45628

45628

36197

36197

36197

RubberShutOffTool

88757

88757

88757

88125

88125

88125

ReplacementRubber

37454

37454

37454

37629

37629

37629

HolderforRubberShutOffTool

61981

63396

61981

61789

61789

61789

RubberStopperLubricant

580657

580657

580657

580657

580657

580657

Inserting

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

EZReleaseInsertingTool

83261

83261

83261

83261

83261

83261

Extracting

MAOP*

125psig

125psig

250psig

125psig

125psig

250psig

MachineAdapter

36733

-

36733

36733

-

36733

ReducingBushing

36969   1-1/4"x1

-

36969   1-1/4"x1

-

-

-

ExtractingTool

80088

80088

80088

80088

80088

80088



D-5/DH-5 Machine

H-17550

3/4"

3/4"

1"

1"

Control Valve

H-10914    1-1/4"

H-10918    1-1/4"

H-10914    1-1/4"

H-10914   1-1/4"

Installation

Center Locating Punch

H-17615

H-17615

H-17615

H-17615

Test Cap

79159

79159

79160

79160

Completion Plug Wrench

96536

96536

96536

96536

Drilling

MAOP*

125 psig

250 psig

125 psig

125 psig

Power Operator

H-604

H-604

H-604

H-604

Machine Adapter

36195

36195

36195

36195

Reducing Bushing

36969     1-1/4" x 1"

36969     1-1/4" x 1"

-

-

Drill

61982    5/8"

61982    5/8"

-

-

Drill Holder

36998

36998

-

-

Combined Drill & Holder

-

-

79185     3/4"

79185     3/4"

Boring Bar Adapter

-

-

36324

36324

Cutting Grease

88366

88366

88366

88366

Honing Stone

682560

682560

682560

682560

Stopping

MAOP†

125 psig

250 psig

125 psig

125 psig

Machine Adapter

36195

36195

36195

36195

Reducing Bushing

36969     1-1/4" x 1"

36969     1-1/4" x 1"

-

-

Steel Shut Off Tool

46528

46528

36197

36197

Boring Bar Adapter for Steel Shut Off Tool

36324

36324

36324

36324

Rubber Shut Off Tool

88757

88757

88125

88125

Replacement Rubber

37454

37454

37629

37629

Holder for Rubber Shut Off Tool

36998

36998

36915

36915

Rubber Stopper Lubricant

580657

580657

580657

580657

Inserting

MAOP*

125 psig

250 psig

125 psig

125 psig

Machine Adapter

36195

36195

36195

36195

Reducing Bushing

36969     1-1/4" x 1"

36969     1-1/4" x 1"

-

-

EZ Release Inserting Tool

83261

83261

83261

83261

Boring Bar Adapter

36324

36324

36324

36324

Extracting

MAOP*

125 psig

250 psig

125 psig

125 psig

Machine Adapter

36195

36195

36195

36195

Reducing Bushing

36969     1-1/4" x 1"

36969     1-1/4" x 1"

-

-

Extracting Tool

88286

88286

88286

88286



D-5/DH-5 Machine

H-17550

1-1/4"

1-1/4"

2"

2"

2"

Control Valve

H-10914   1-1/2"

H-10918    1-1/2"

H-10914    2"

H-10917     2"

H-10918    2"

Bushing

-

-

-

-

-

Installation

Center Locating Punch

H-17615

H-17615

-

-

-

Test Cap

79161

79161

36811

36811

36811

Completion Plug Wrench

96536

96536

581264

581264

581264

Drilling

MAOP*

125 psig

250 psig

125 psig

250 psig

250 psig

Power Operator

H-604

H-604

H-604

H-604

H-604

Machine Adapter

36196

36196

36188

36188

36188

Drill

33529    1"

33529    1"

33537   1-1/2"

33537   1-1/2"

33537   1-1/2"

Drill Holder

33555

33555

33316

33316

33316

Cutting Grease

88366

88366

88366

88366

88366

Honing Stone

682560

682560

682560

682560

682560

Stopping

MAOP†

125 psig

250 psig

125 psig

250 psig

250 psig

Machine Adapter

36196

36196

36188

36188

36188

Steel Shut Off Tool

33600

33600

36189

36189

36189

Rubber Shut Off Tool

88758

88758

88773

88773

88773

Replacement Rubber

37459

37459

37555

37555

37555

Boring Bar Adapter for Rubber Shut Off Tool

36324

36324

-

-

-

Holder for Rubber Shut Off Tool

61969

61969

33316

33316

33316

Rubber Stopper Lubricant

580657

580657

580657

580657

580657

Inserting

MAOP*

125 psig

250 psig

125 psig

250 psig

250 psig

Machine Adapter

36196

36196

36188

36188

36188

EZ Release Inserting Tool

83257

83257

83258

83258

83258

Boring Bar Adapter

36324

36324

36324

36324

36324

Extracting

MAOP*

125 psig

250 psig

125 psig

250 psig

250 psig

Machine Adapter

36196

36196

36188

36188

36188

Extracting Tool

88286

88286

88384

88384

88384

*MaximumAllowable Operating Pressure
†In stopping section of chart, Maximum Allowable Operating Pressure (MAOP) applies to use of rubber shut off tool only. For steel shut off tool, variables in hole drilled in pipe may or may not allow similar MAOP.
